Cruise Control Actuator Assembly with Control Module Inspection

Reference: CRUISE CONTROL ACTUATOR ASSEMBLY WITH CONTROL MODULE REMOVAL AND INSTALLATION

• Check actuator lever (1) does not turn clockwise from position "a".
• Check actuator lever (1) turns counterclockwise smoothly from position "a" to position "b" by about 1/2 rotation.
• Check actuator lever (1) returns from position "b" to position "a" by return spring force.

  If any faulty condition is found in the check, replace actuator assembly (2).

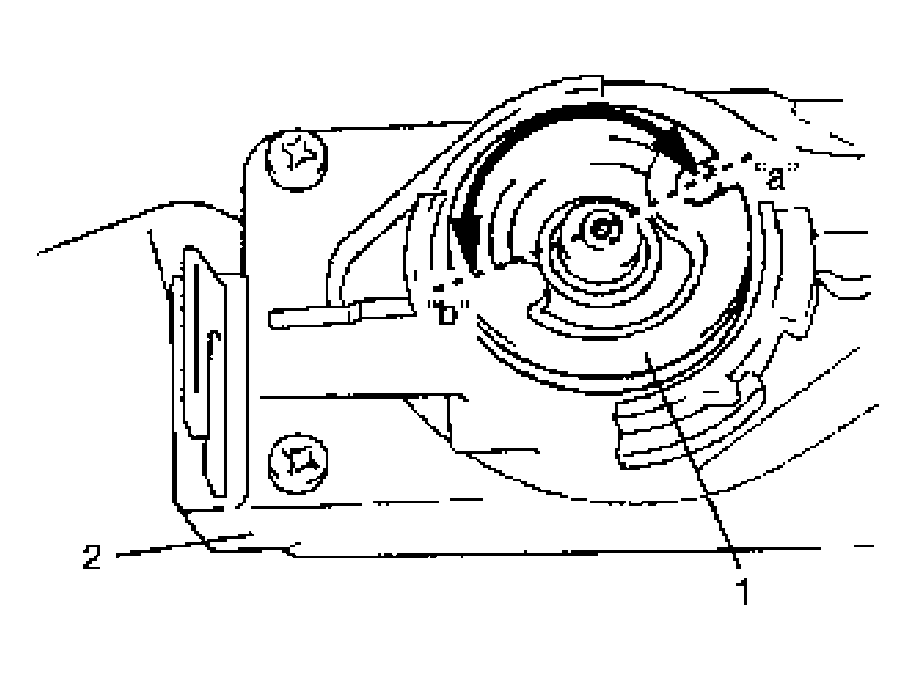

  Fig 1: Removing Cruise Control Actuator Assembly With Control Module

  Courtesy of SUZUKI OF AMERICA CORP.
