Power Door Mirror Switch Inspection

Remove mirror switch from door trim.
Check for continuity between terminals at each switch position.
If check result is not as specified, replace door mirror switch.

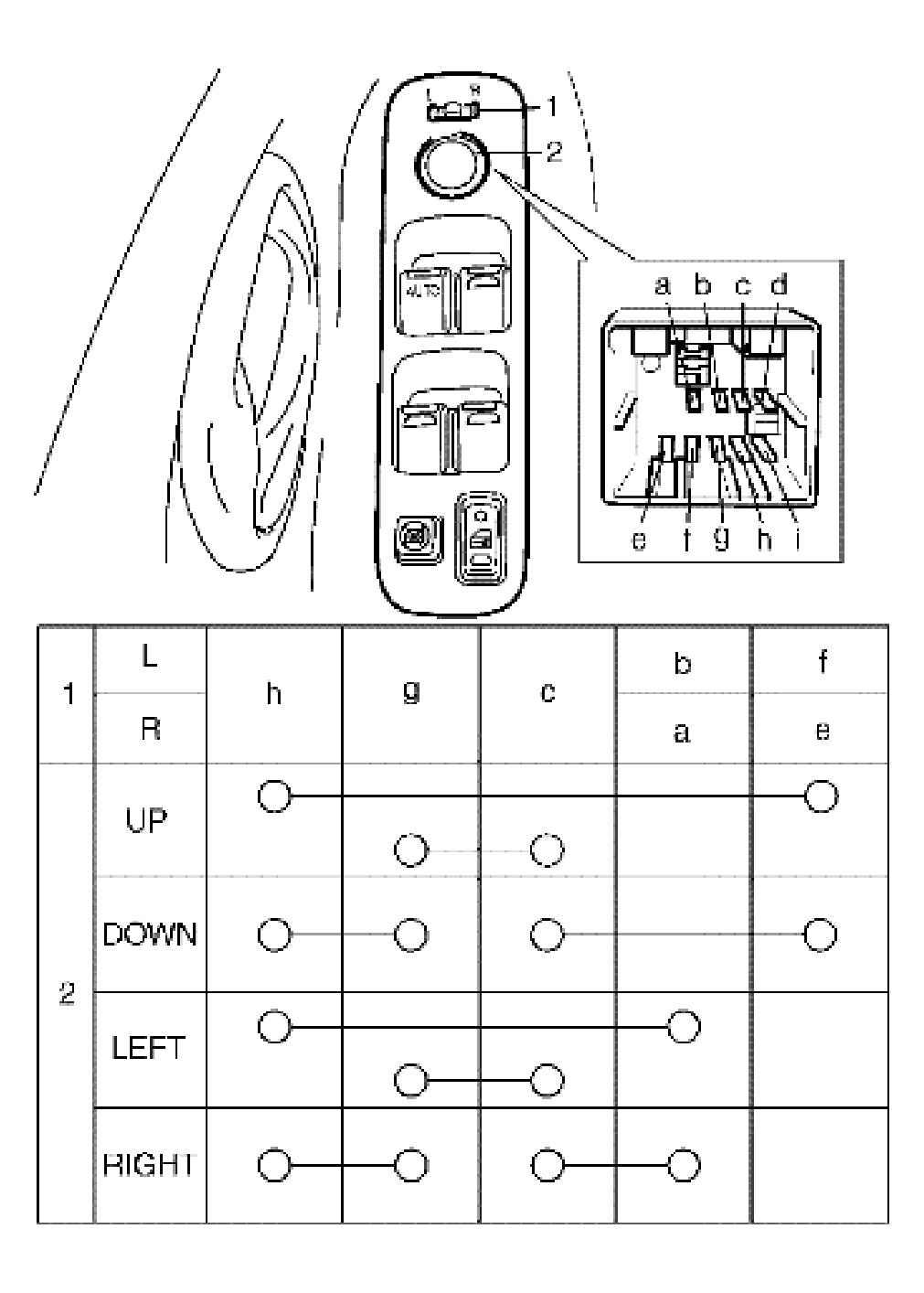

Fig 1: Inspecting Power Door Mirror Switch
Courtesy of SUZUKI OF AMERICA CORP.
