Power Window Sub Switch Inspection

Check for continuity between terminals at each switch condition.

If check result is not as specified, replace switch.

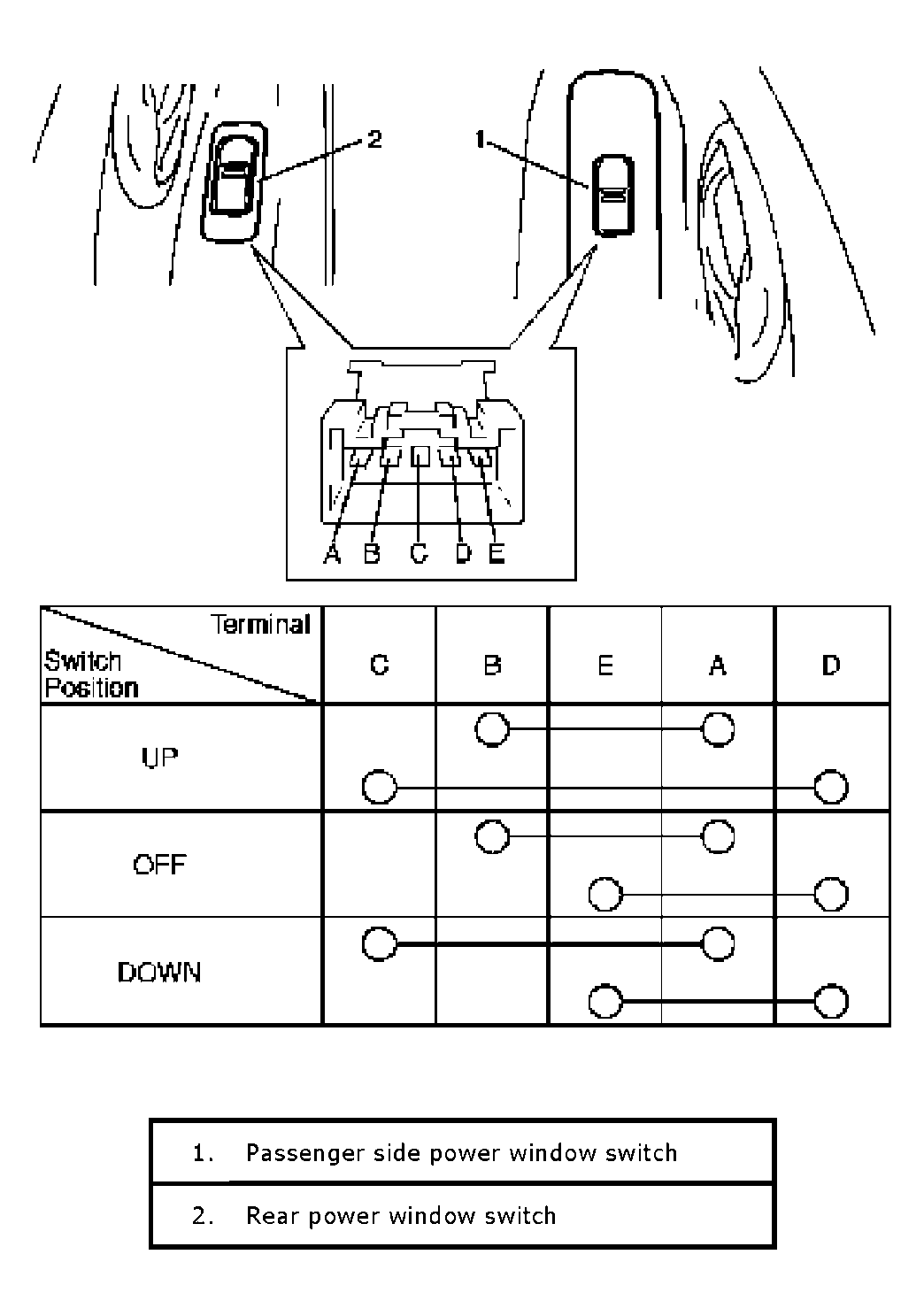

Fig 1: Inspecting Power Window Sub Switch
G04591678Courtesy of SUZUKI OF AMERICA CORP.
