ABS Hydraulic Unit / Control Module Assembly Components

CAUTION: Never disassemble ABS hydraulic unit / control module assembly, loosen blind plug or remove motor. Performing any of these prohibited services will affect original performance of ABS hydraulic unit / control module assembly.

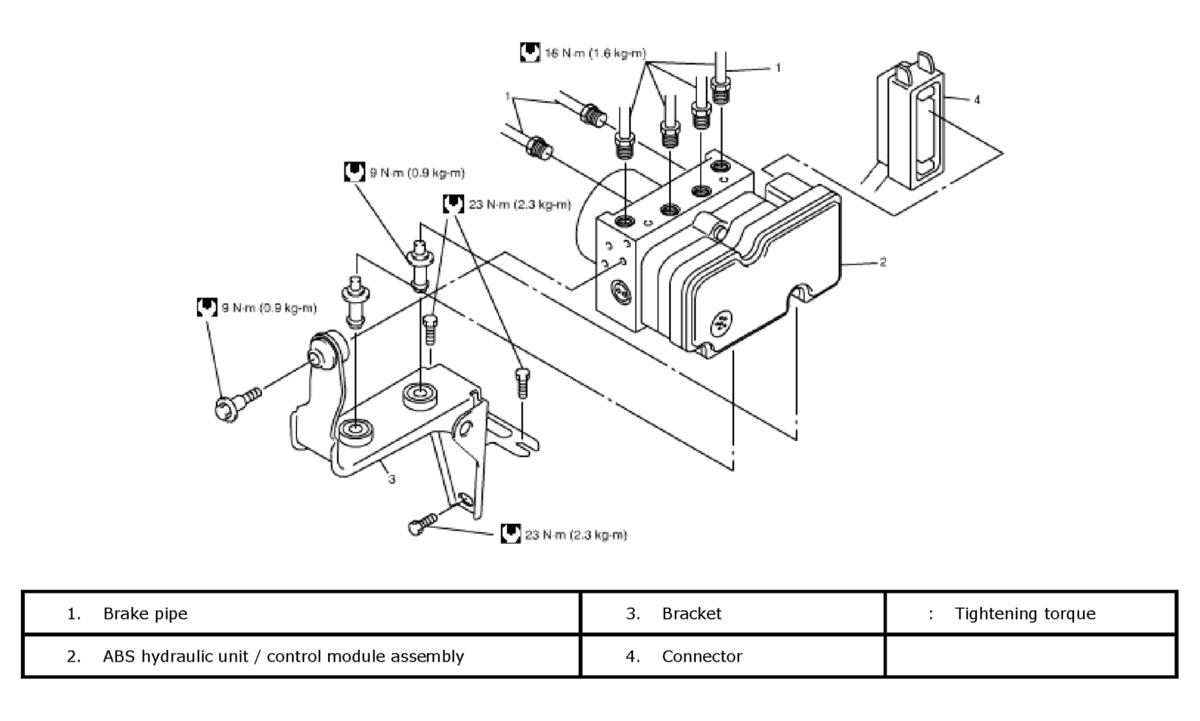

Fig 1: Identifying ABS Hydraulic Unit / Control Module Assembly Components
G04590527Courtesy of SUZUKI OF AMERICA CORP.
