Generator Inspection: Stator

Using an ohmmeter, check all leads for continuity. If there is no continuity, replace the stator.

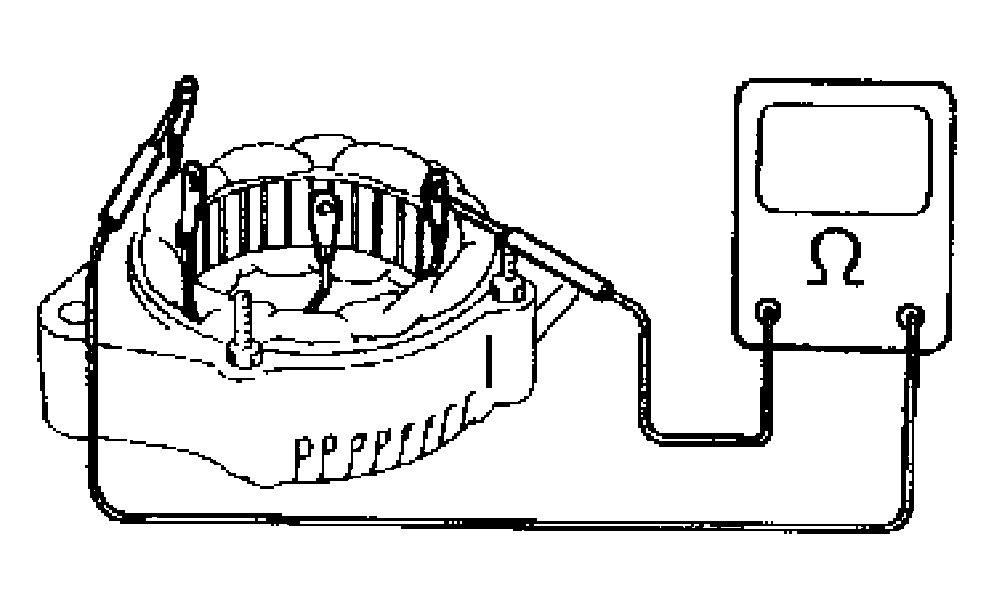

Fig 1: Checking Continuity Between Stater Leads
Courtesy of SUZUKI OF AMERICA CORP.
Using an ohmmeter, check that there is no continuity between coil leads and stator core. If there is continuity, replace the stator.

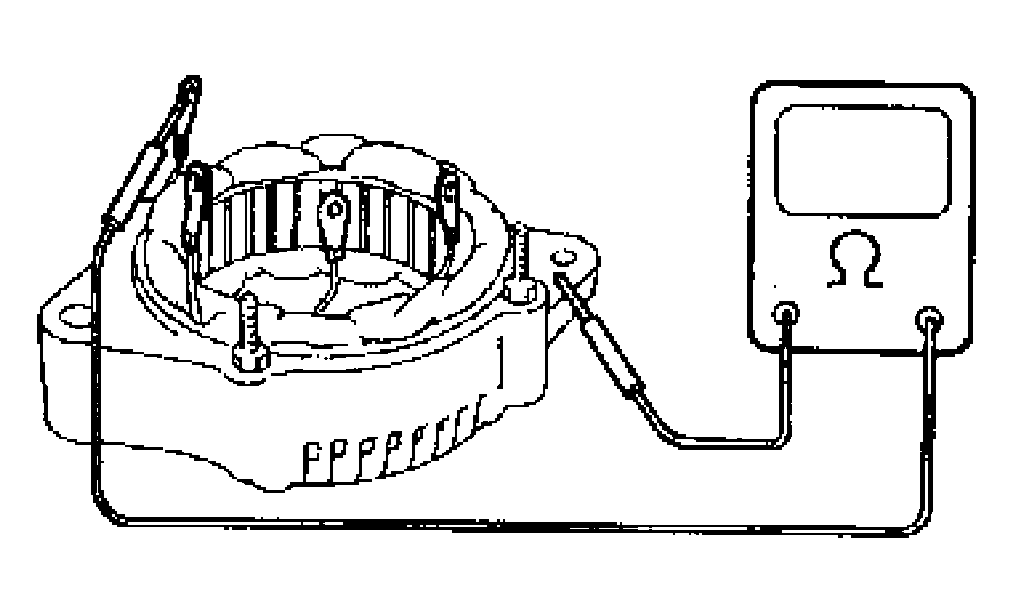

Fig 2: Checking Continuity Between Coil Leads And Stator Core
Courtesy of SUZUKI OF AMERICA CORP.
