Electronic Control System Components Location
Electronic Control System Components Location

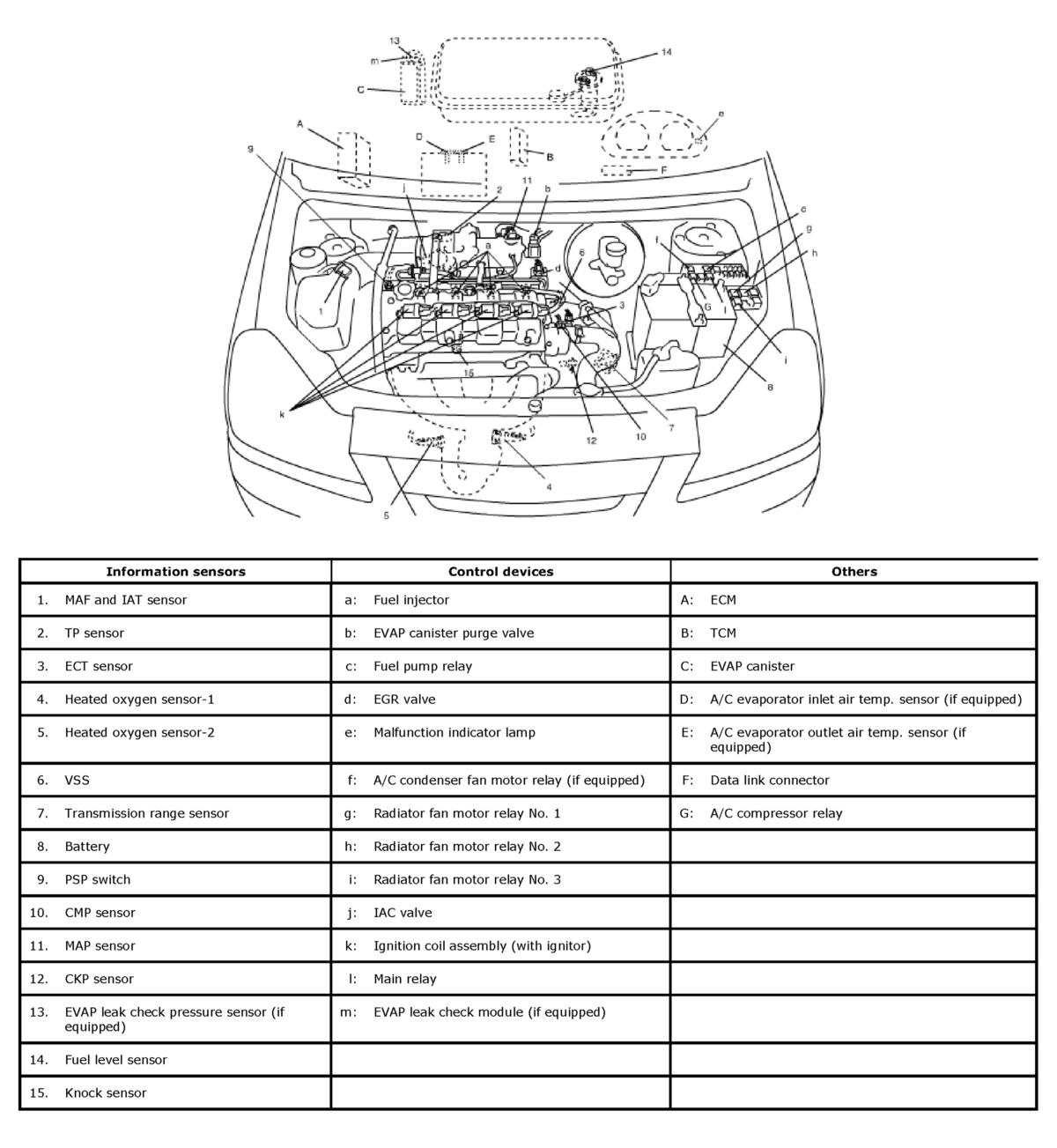

Fig 1: Identifying Electronic Control System Components Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
