A/C Condenser Fan Control System Inspection
›
Wiring Diagram
A/C Condenser Fan Control System Inspection: Wiring Diagram

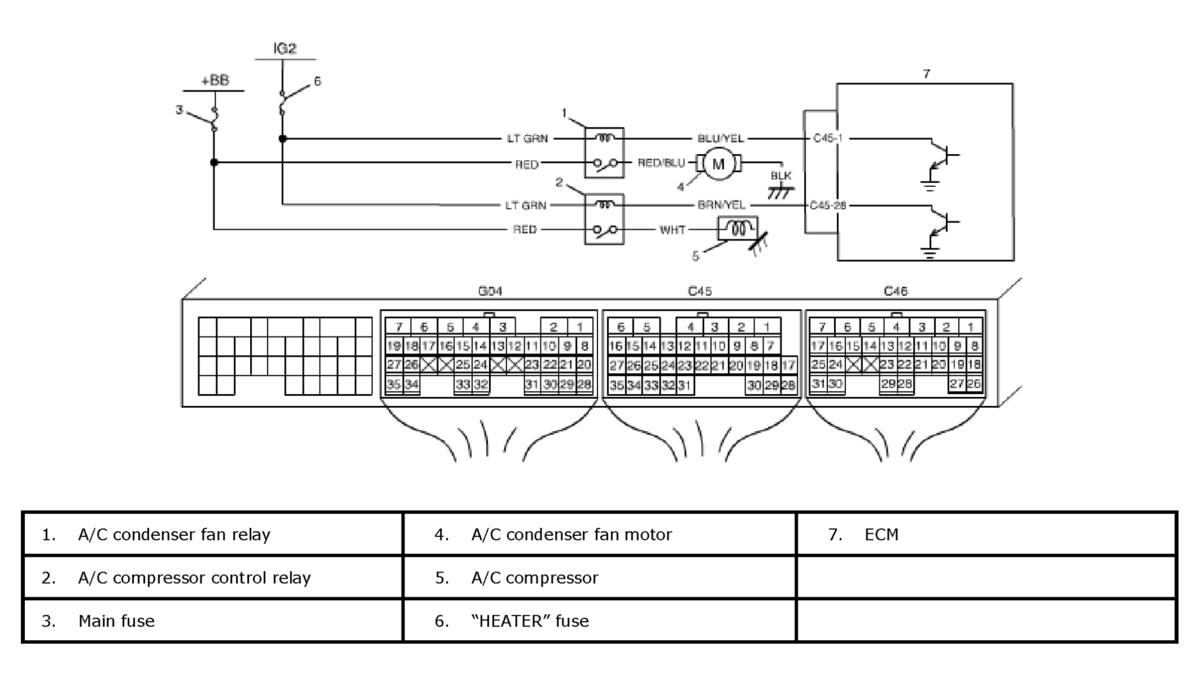

Fig 1: A/C Condenser Fan Control System - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
