ECM Input / Output Circuit Diagram
ECM Input / Output Circuit Diagram

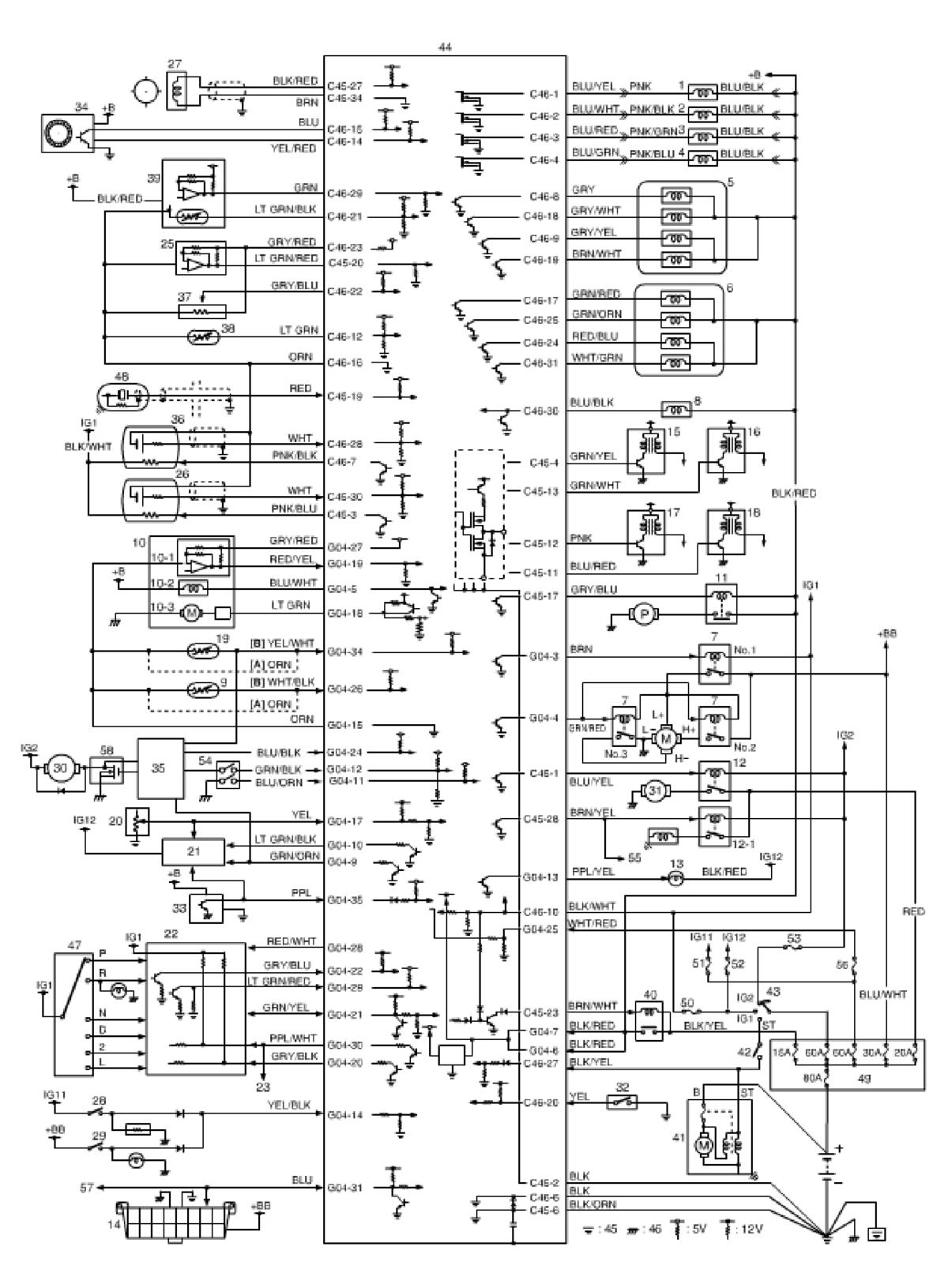

Fig 1: ECM Input / Output Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.

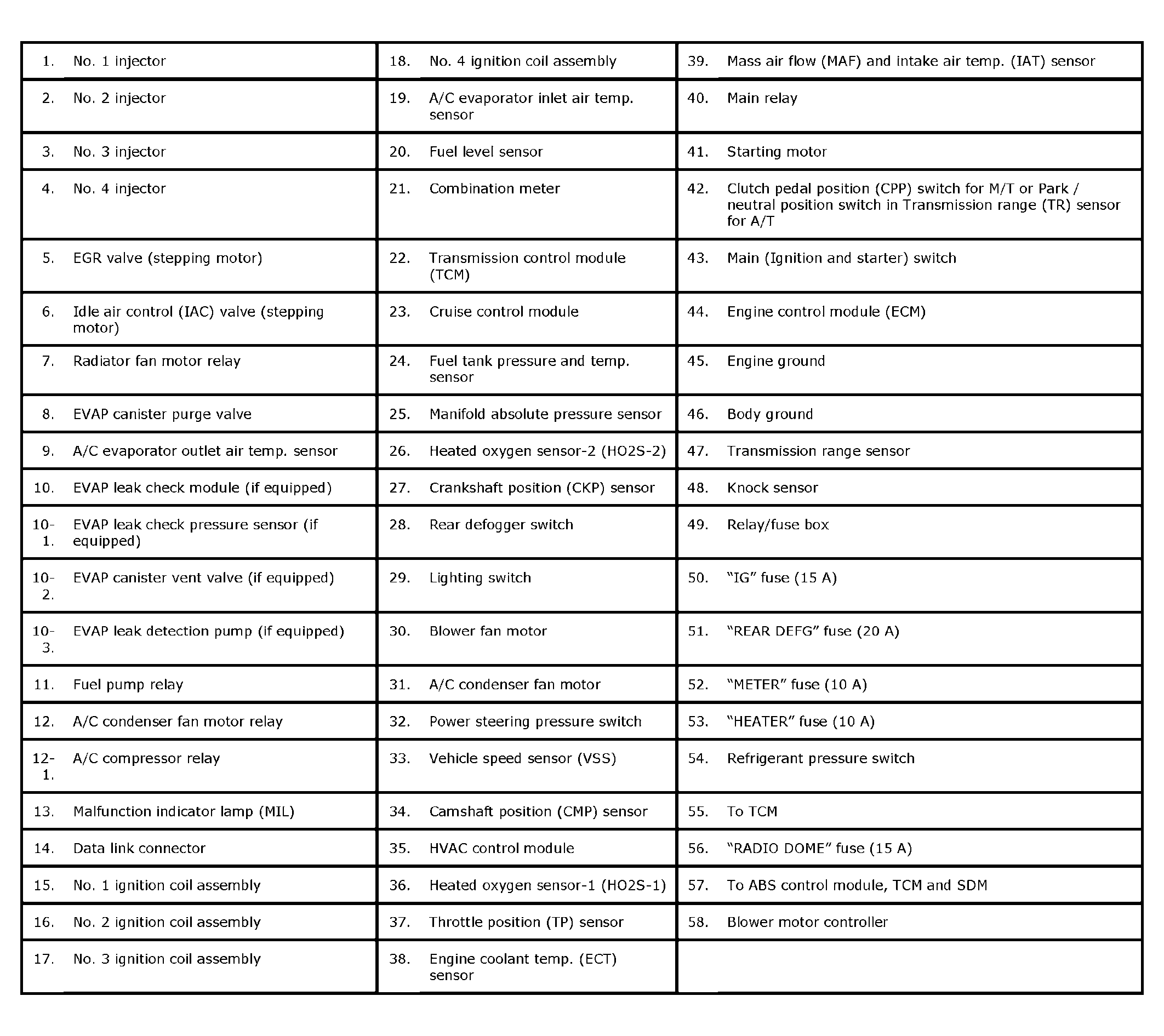

Fig 2: ECM Input / Output Circuit Reference Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
