Suzuki
›
2007
›
Aerio Base, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine General Information And Diagnosis
›
Schematic and Routing Diagram
›
Engine and Emission Control System Diagram
Engine and Emission Control System Diagram

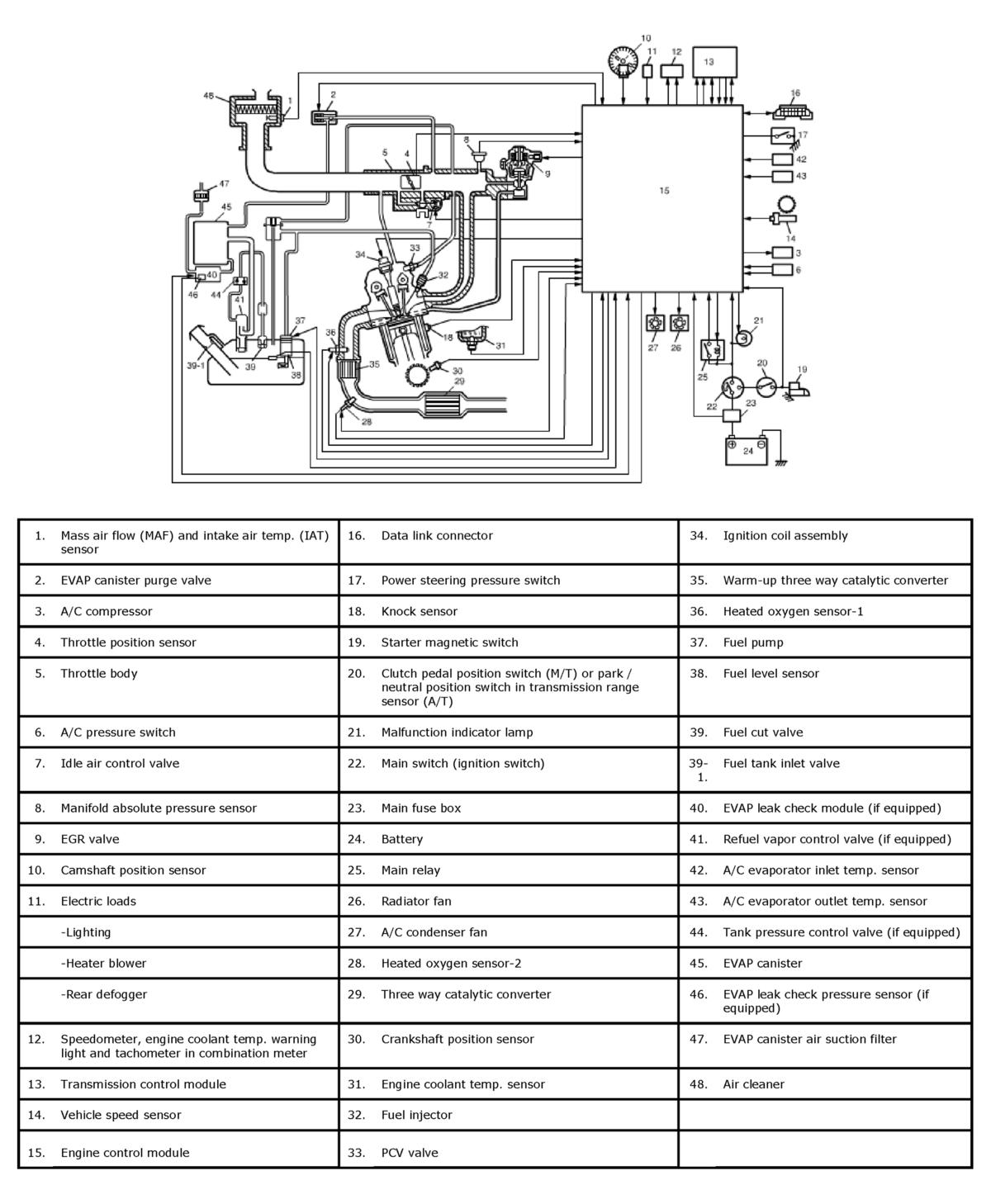

Fig 1: Engine And Emission Control System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
