Fuel Pump Assembly Removal and Installation: Removal

Remove fuel tank from vehicle. Refer to FUEL TANK REMOVAL AND INSTALLATION .
Disconnect fuel cut valve hose (1), fuel feed line (2) and fuel return pipe (3) from fuel pump assembly.
When disconnecting joint of fuel feed pipe (2) and fuel return pipe (3) from fuel pump, unlock joint by inserting special tool between pipe and joint lock first.

Special Tool

(A): 09919-47020

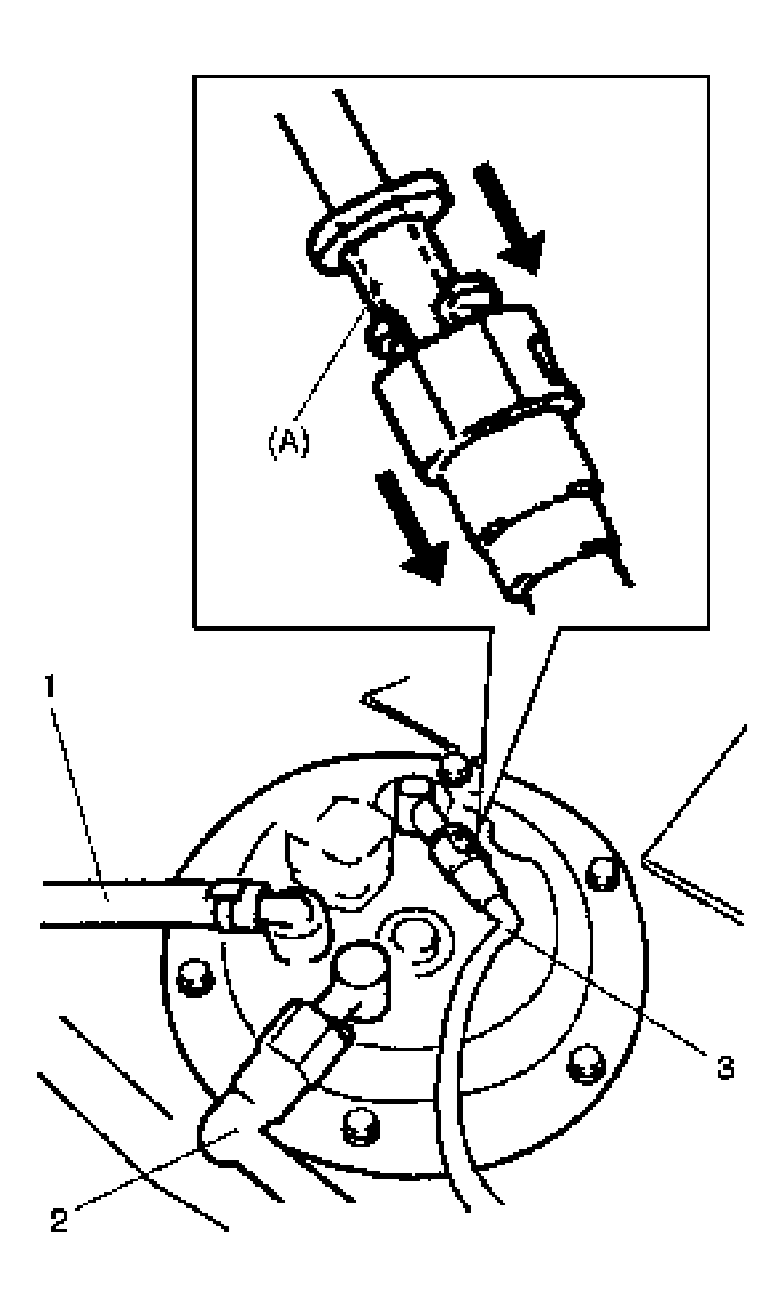

Fig 1: Disconnecting Fuel Cut Valve Hose Fuel Feed Line And Fuel Return Pipe
Courtesy of SUZUKI OF AMERICA CORP.
Remove fuel pump assembly (1) from fuel tank (2).

Fig 2: Removing Fuel Pump Assembly From Fuel Tank
Courtesy of SUZUKI OF AMERICA CORP.
