Spark Plug Removal and Installation: Removal

  1. Remove engine cover from cylinder head cover referring to ENGINE COVER REMOVAL AND INSTALLATION .
  2. Remove ignition coil (1) referring to IGNITION COIL ASSEMBLY (IGNITER AND IGNITION COIL) REMOVAL AND INSTALLATION .
  3. Remove spark plug (2).

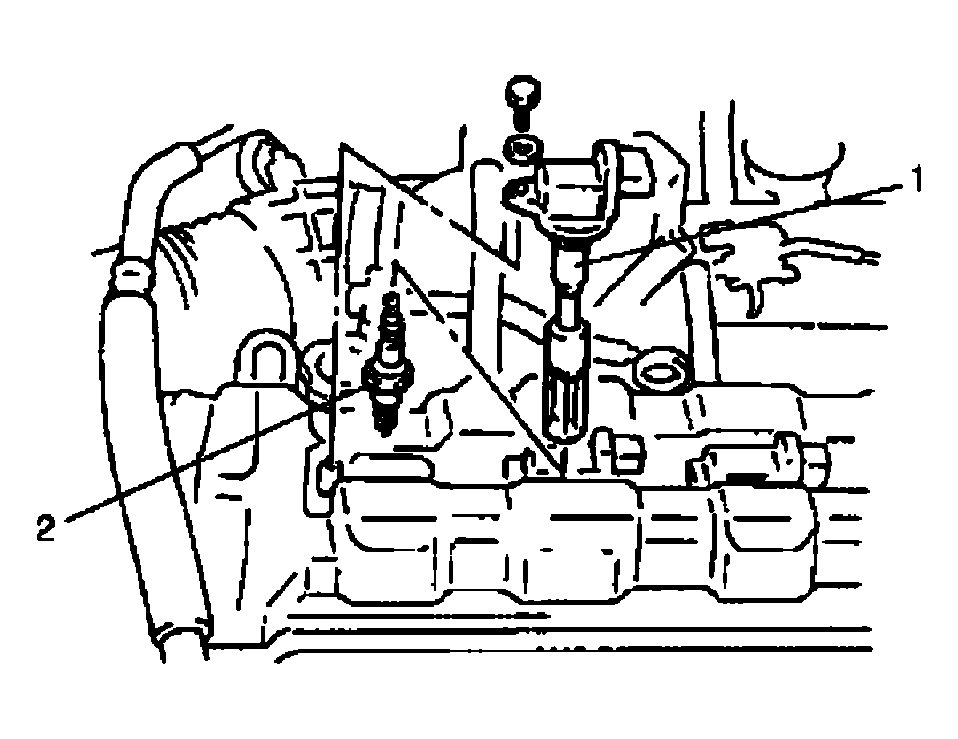

    Fig 1: Removing Ignition Coil And Spark Plug
    G04590030Courtesy of SUZUKI OF AMERICA CORP.
