Repair and Diagnosis
›
Engine Performance
›
Ignition System
›
Schematic & Ratio Diagram
›
Ignition System Wiring Circuit Diagram
Ignition System Wiring Circuit Diagram

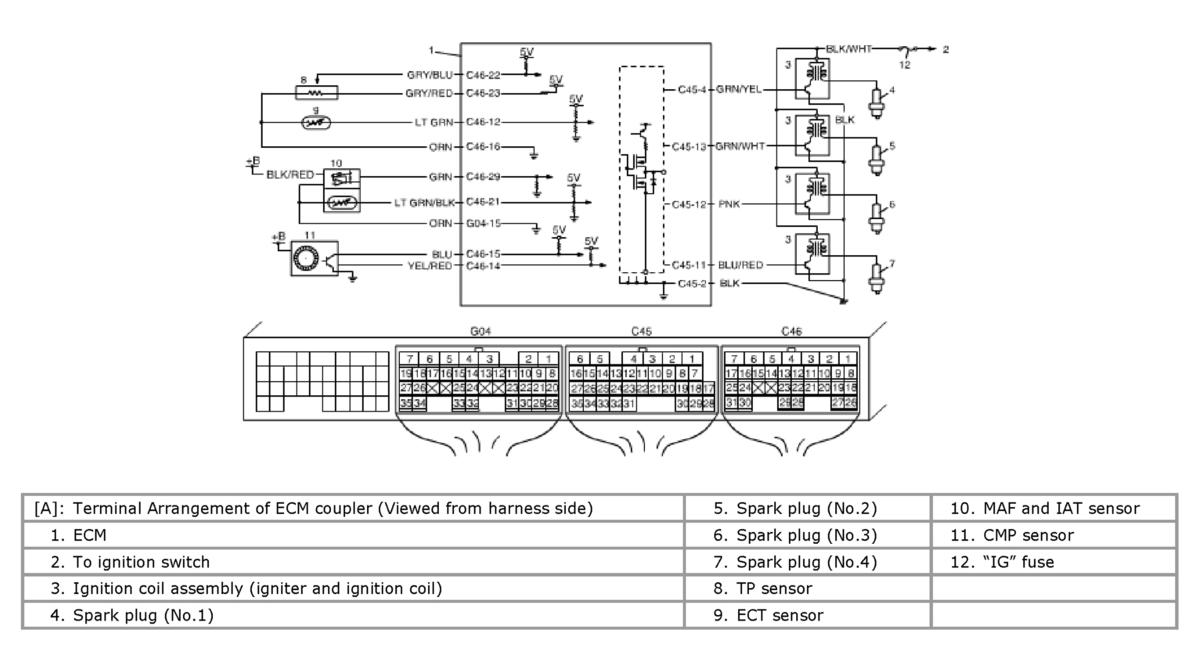

Fig 1: Ignition System Wiring Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
