EVAP Leak Check Module Visual Check

Reference: EVAP CANISTER REMOVAL AND INSTALLATION

Check EVAP leak check module and its O-ring (1) for damage and deterioration.

If malfunctioning is found, replace.

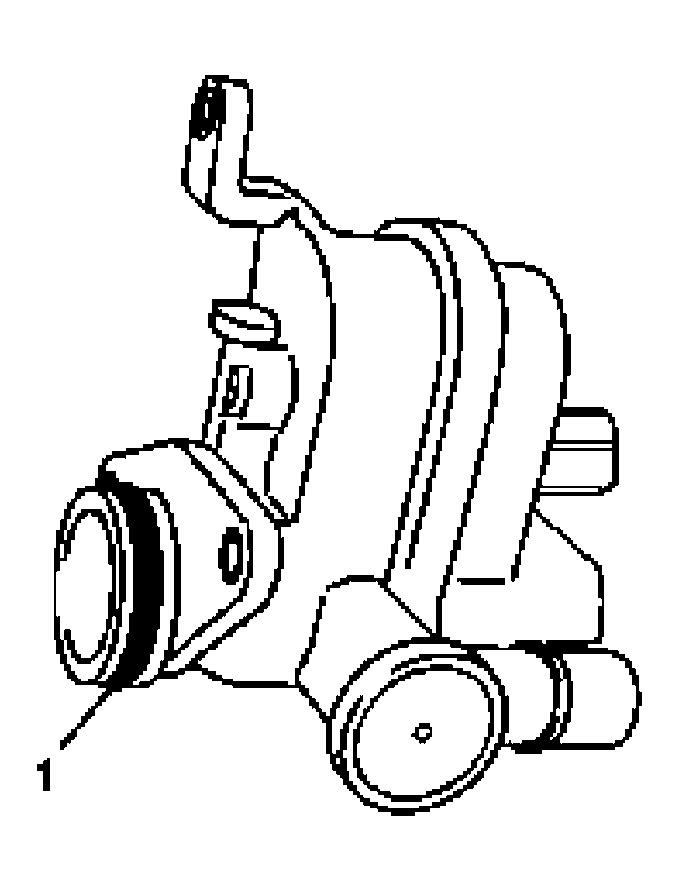

Fig 1: Checking EVAP Leak Check Module And O-Ring For Damage And Deterioration

Courtesy of SUZUKI OF AMERICA CORP.
