Control Rod Components
Control Rod Components

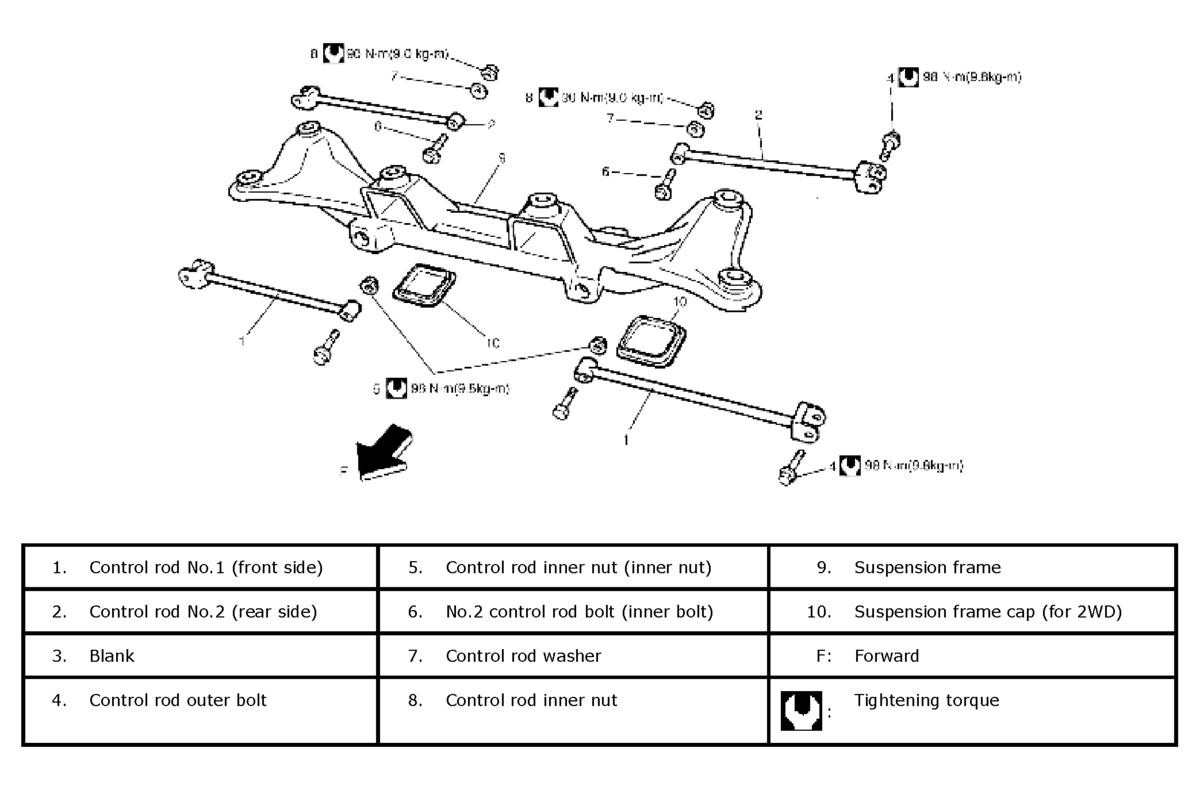

Fig 1: Identifying Control Rod Components (With Tightening Torques)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
