A/T Description: 4WD

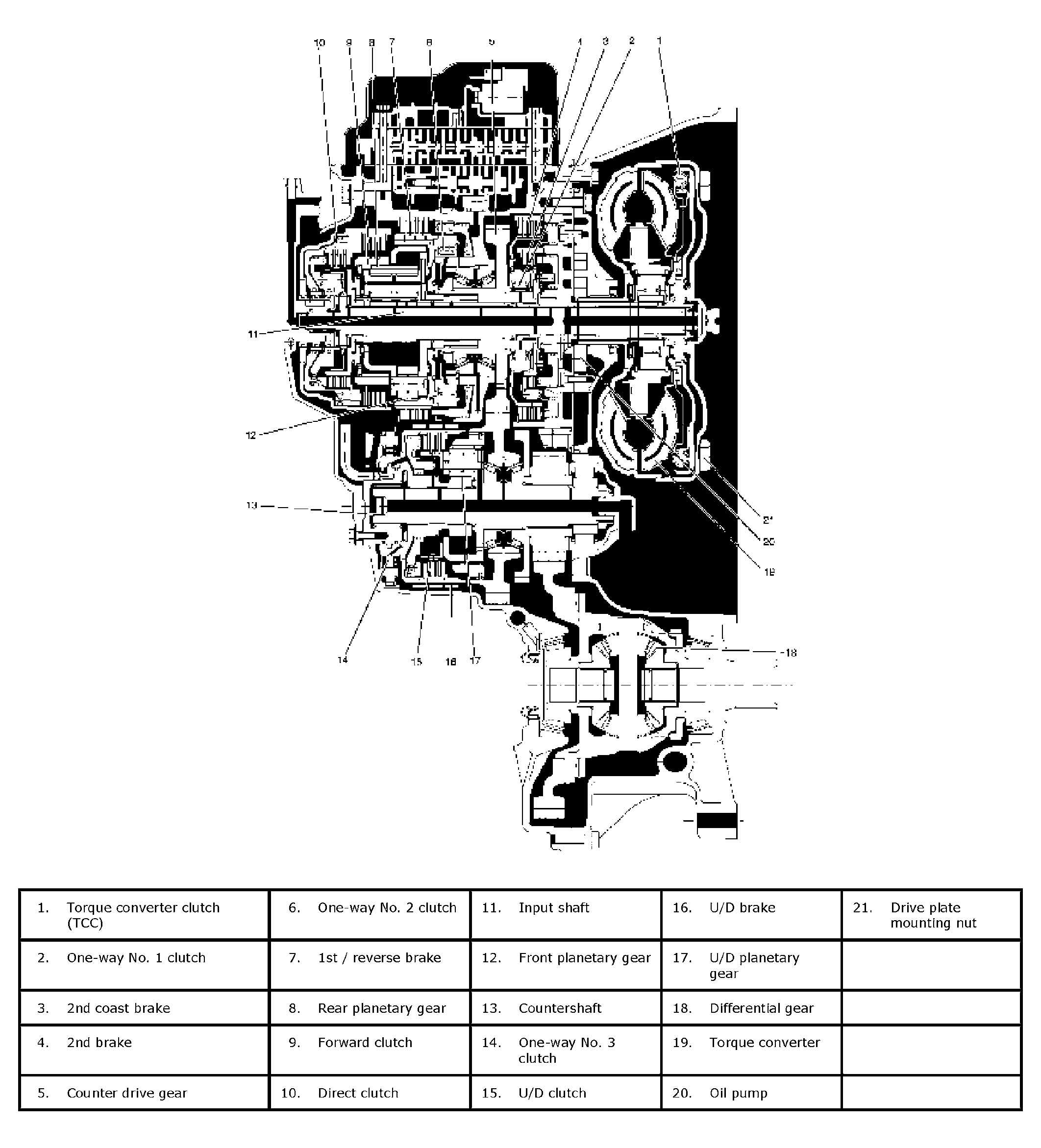

Fig 1: Sectional View Of A/T (4WD)
G04591800Courtesy of SUZUKI OF AMERICA CORP.
