Resistance Check

Check resistance between pressure control solenoid valve (1) terminals. If check result is not as specified, replace solenoid valve.

Pressure control solenoid valve resistance

Standard: 5.0 - 5.6 Ω (at 20 °C (68 °F))

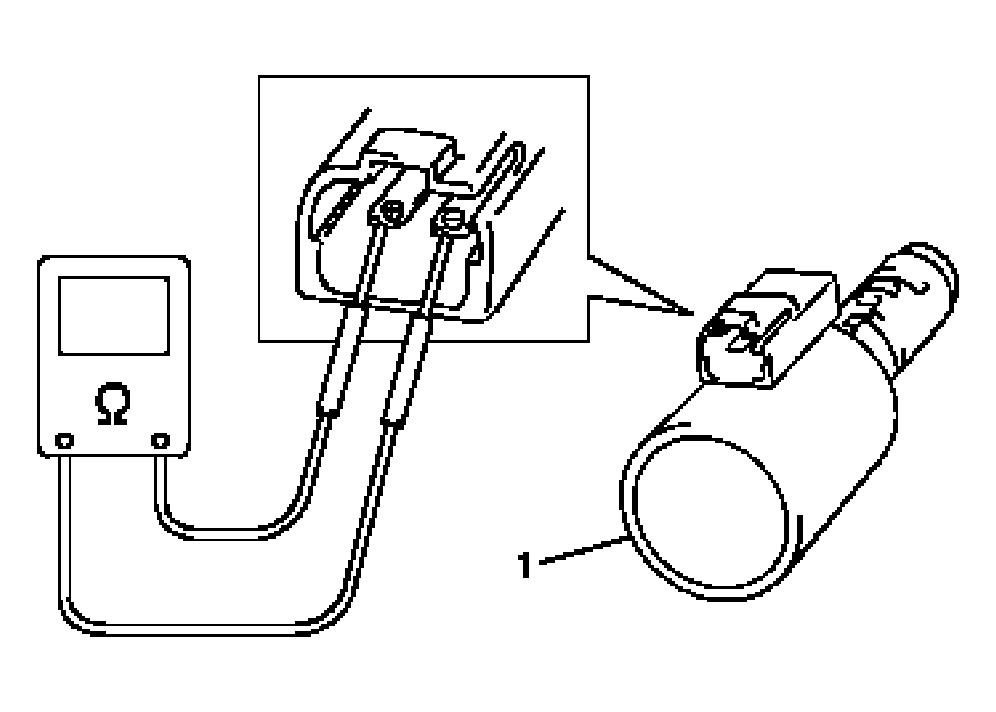

Fig 1: Checking Resistance Between Pressure Control Solenoid Valve Terminals

Courtesy of SUZUKI OF AMERICA CORP.
