Select Cable Components

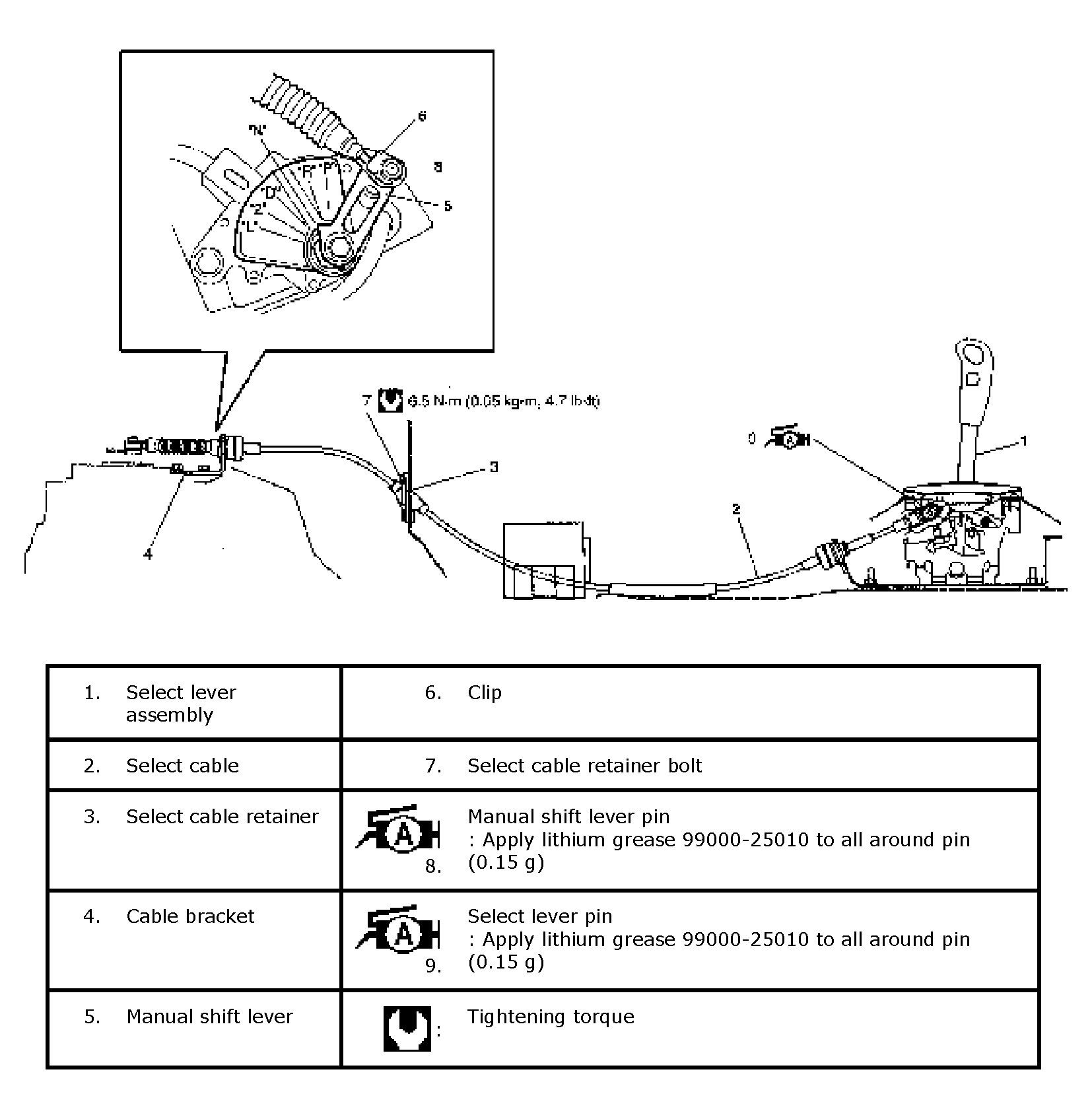

Fig 1: Identifying Select Cable Components With Tightening Torques
G04591868Courtesy of SUZUKI OF AMERICA CORP.
