Transaxle Rear Cover Components
Transaxle Rear Cover Components

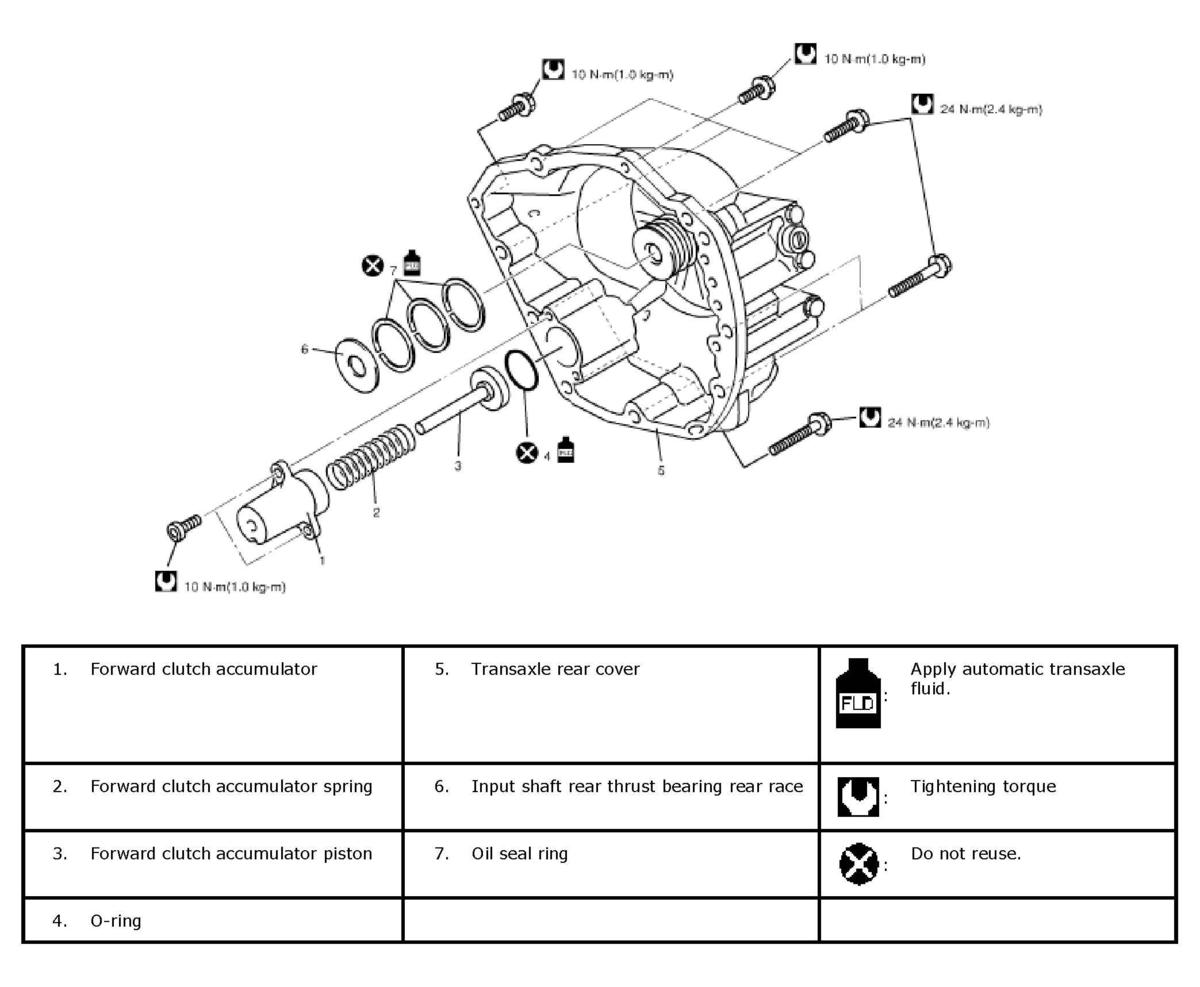

Fig 1: Identifying Transaxle Rear Cover Components With Tightening Torques
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
