Valve Body Assembly Disassembly and Reassembly: Disassembly

Pull out manual valve.
Remove solenoid valves with O-ring by removing bolts.
NOTE: Never reuse removed O-ring.

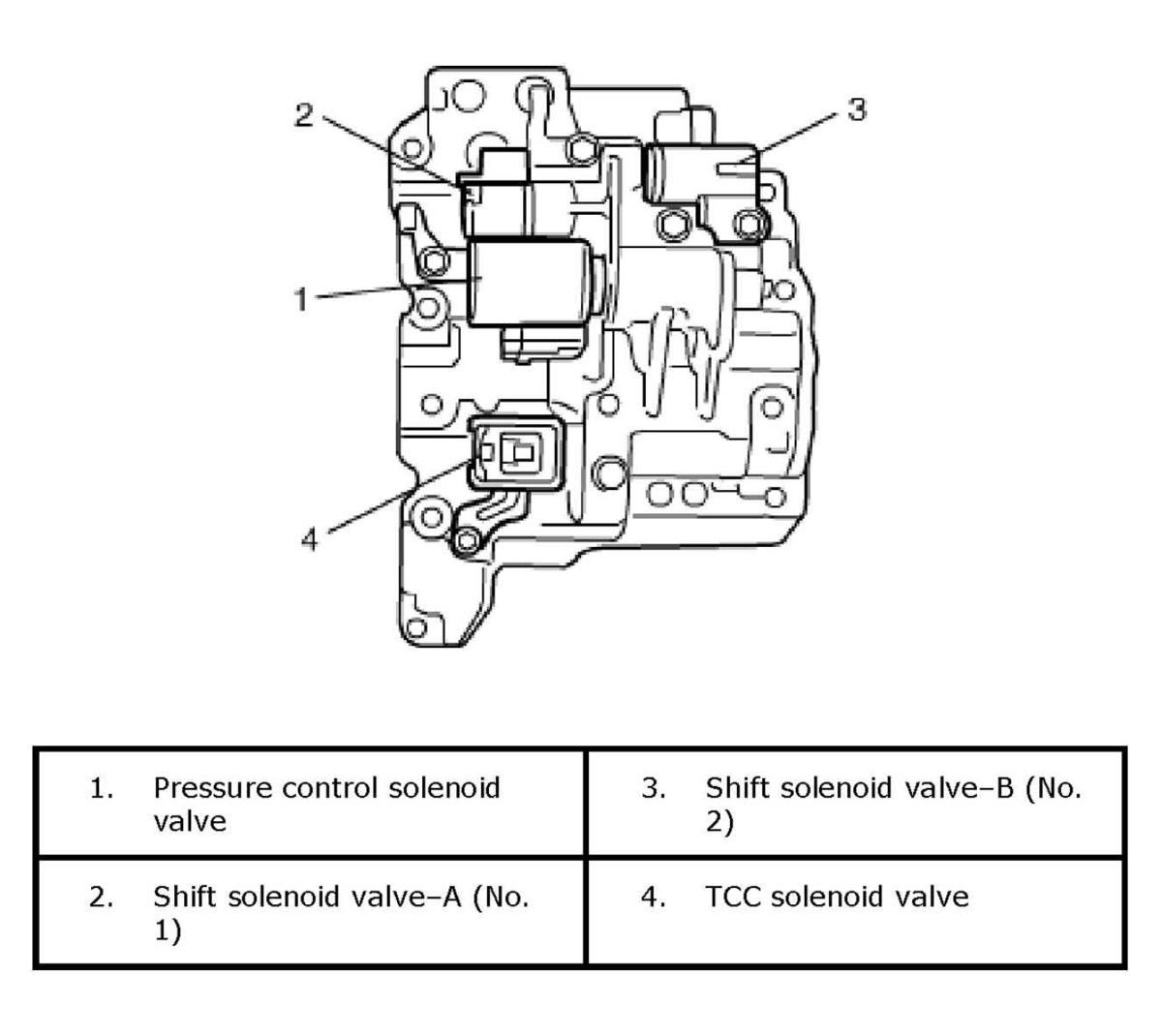

Fig 1: Removing Solenoid Valves With O-Ring
Courtesy of SUZUKI OF AMERICA CORP.
