Transfer Assembly Components
Transfer Assembly Components

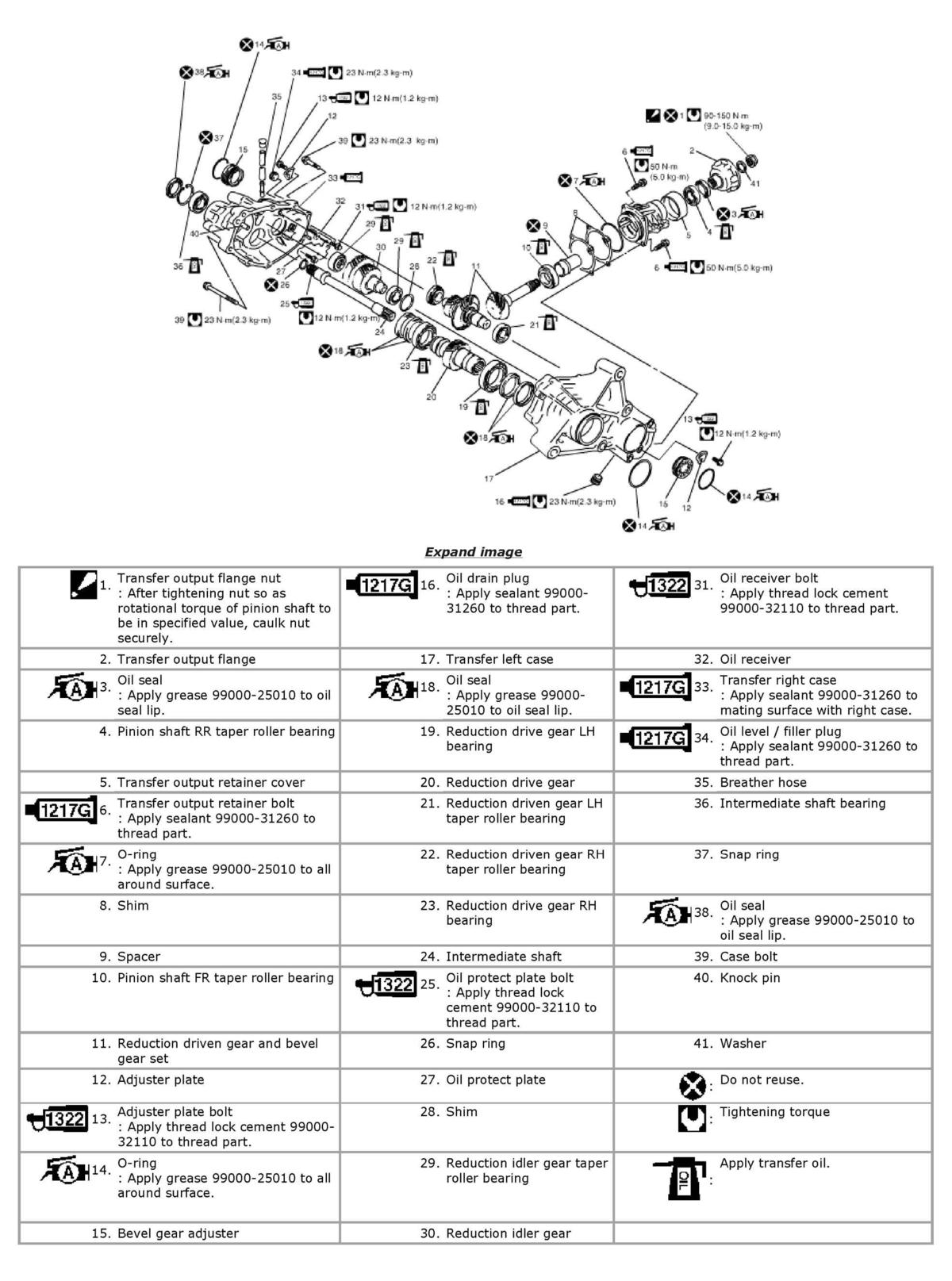

Fig 1: Identifying Transfer Assembly Components (With Tightening Torques)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
