Front Strut Assembly Components
Front Strut Assembly Components

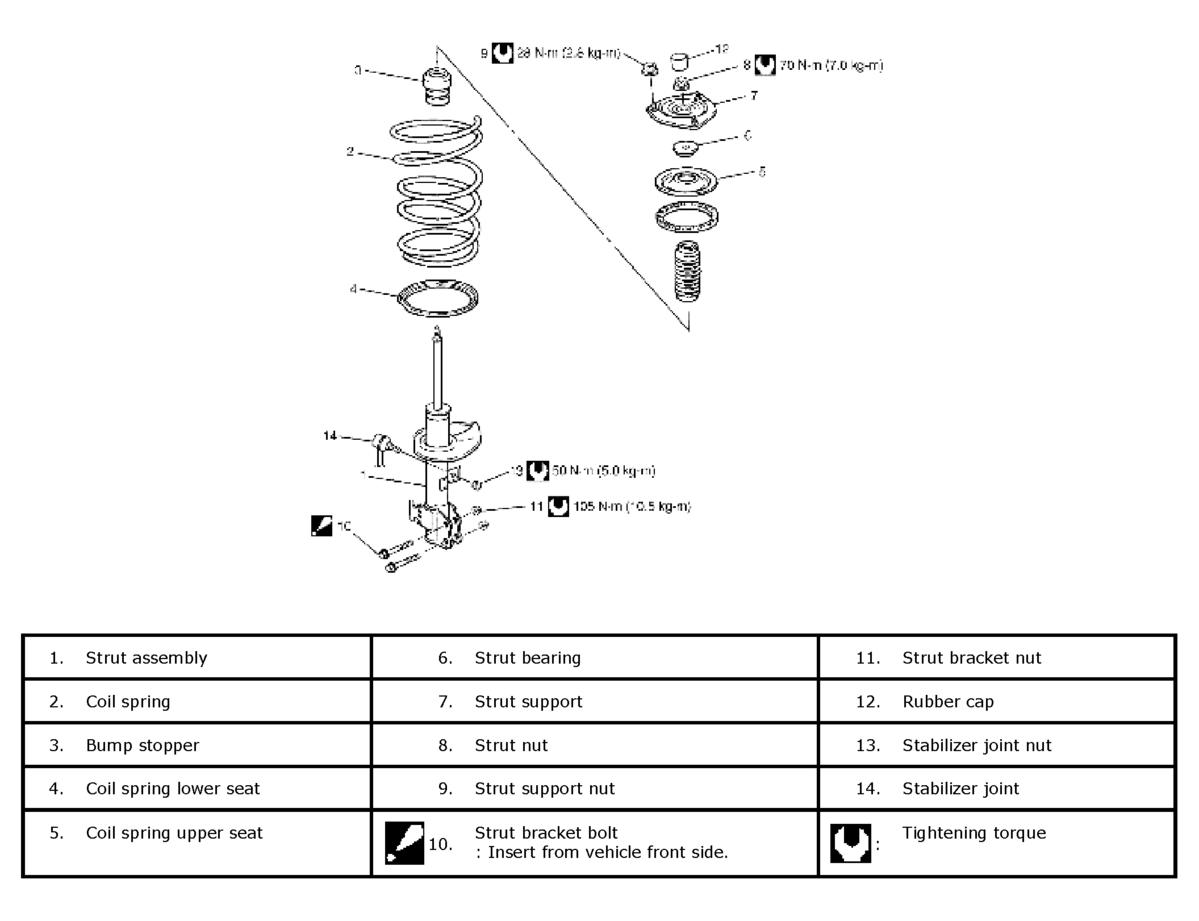

Fig 1: Identifying Front Strut Assembly Components (With Tightening Torques)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
