Left Case Disassembly and Assembly: Assembly

If input oil gutter has been removed, install it with bolt to which thread lock cement has been applied.
"A": Thread lock cement 99000-32110

Tightening torque

Input oil gutter bolt a: 10 N.m (1.0 kg-m, 7.5 lb-ft)

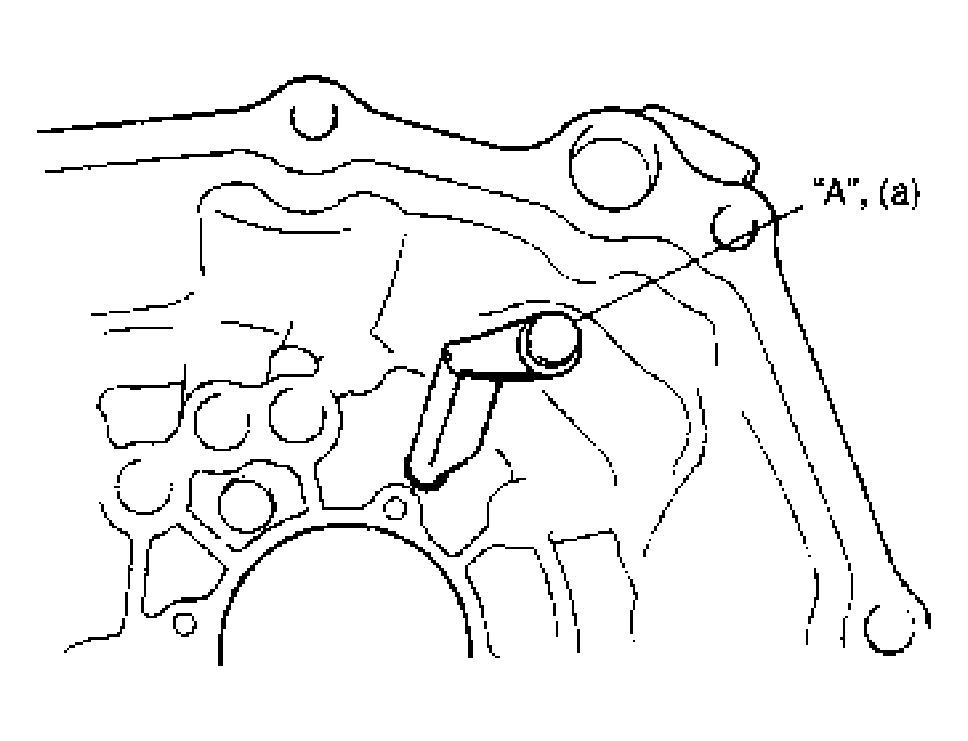

Fig 1: Installing Input Oil Gutter
Courtesy of SUZUKI OF AMERICA CORP.
