Manual Transaxle Assembly Components
Manual Transaxle Assembly Components

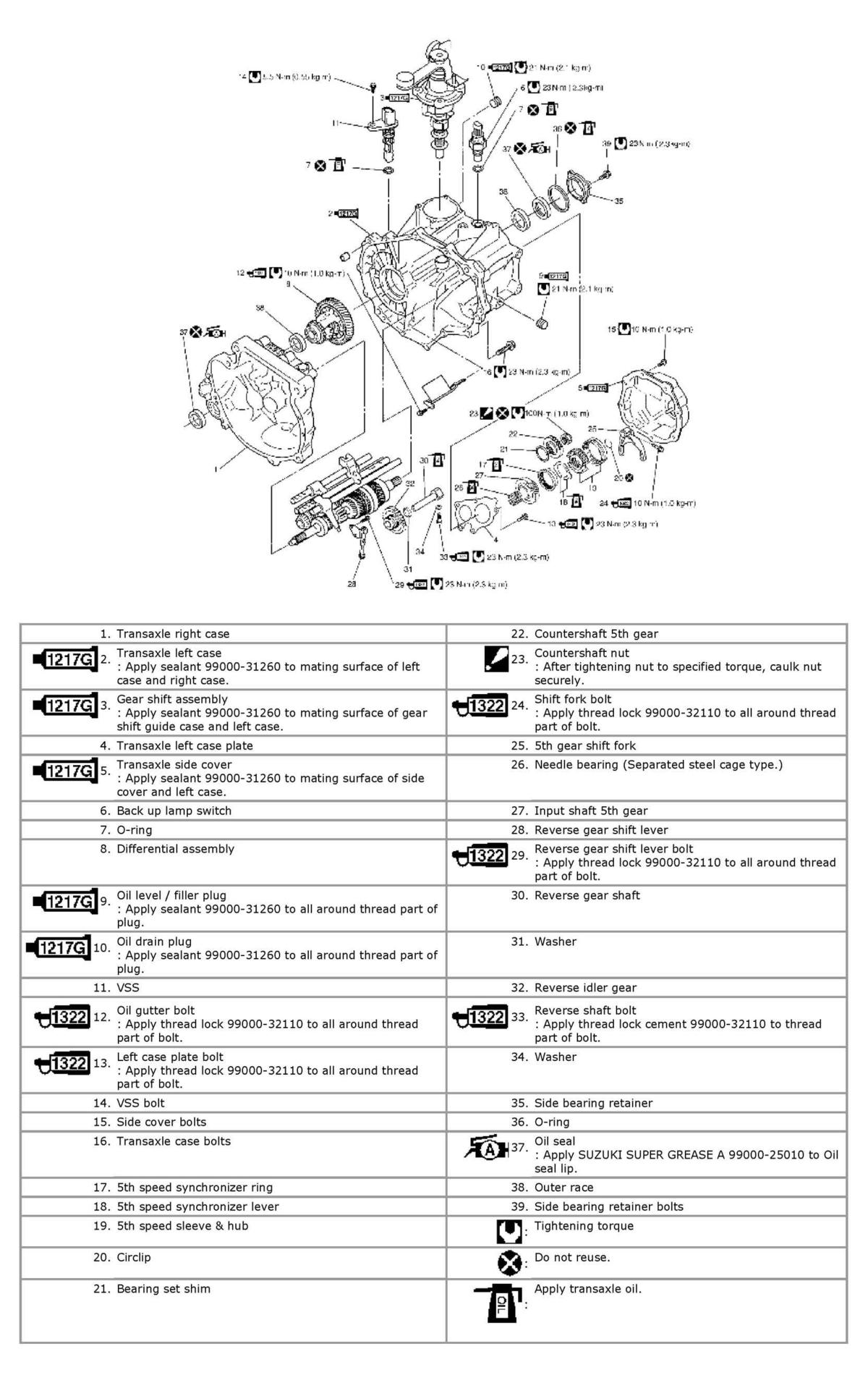

Fig 1: Identifying Manual Transaxle Assembly Components (With Tightening Torques)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
