Suzuki
›
2007
›
Grand Vitara Base, AWD, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel System
›
Repair Instructions
›
Fuel System Components
Fuel System Components

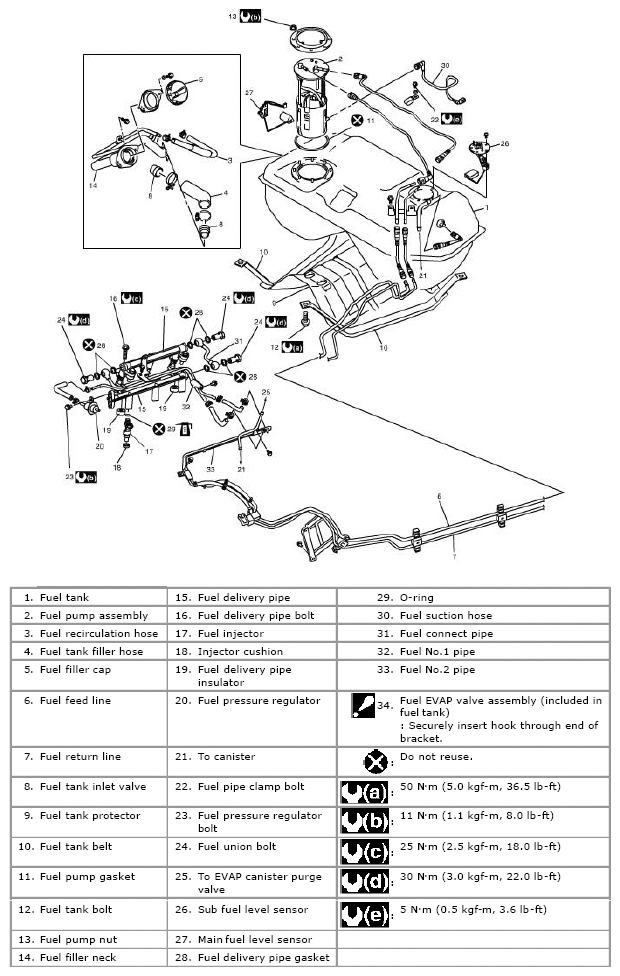

Fig 1: Fuel System Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
