Hold-In Test

  1. While connected as above with plunger out, disconnect negative lead (2) from terminal "M" (1).
  2. Check that plunger and pinion remain out. If plunger and pinion return inward, replace magnetic switch.

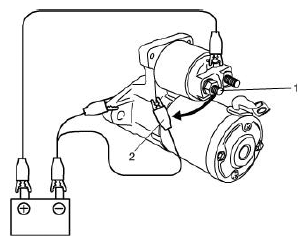

    Fig 1: Testing Starting Motor - Hold-In Test
    G04807655Courtesy of SUZUKI OF AMERICA CORP.
