DTC U0073: Control Module Communication BUS Off
›
Wiring Diagram

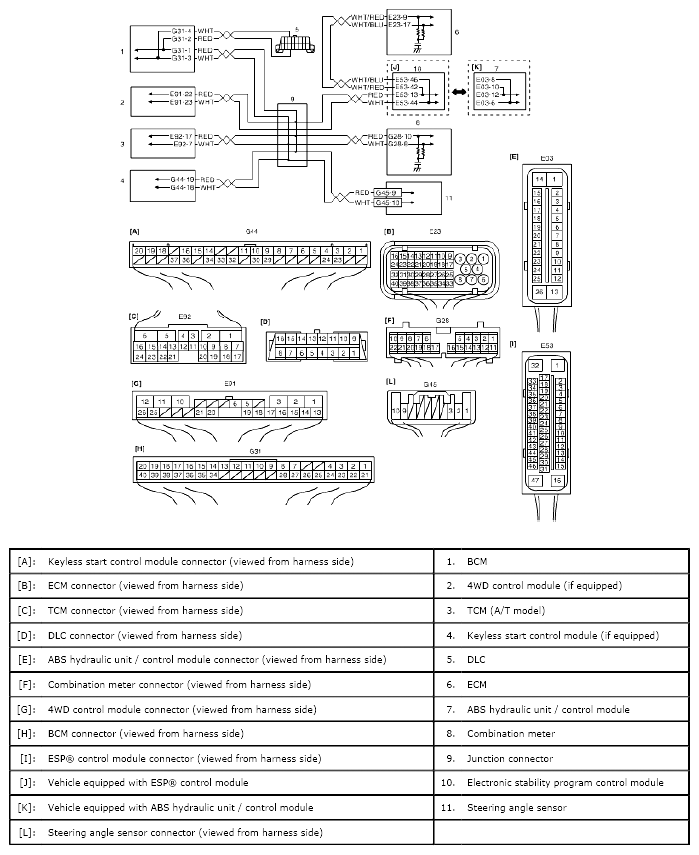

DTC U0073: Control Module Communication BUS Off: Wiring Diagram
Fig 1: Identifying Control Module Communication BUS Off Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
