ECM Transmission Data

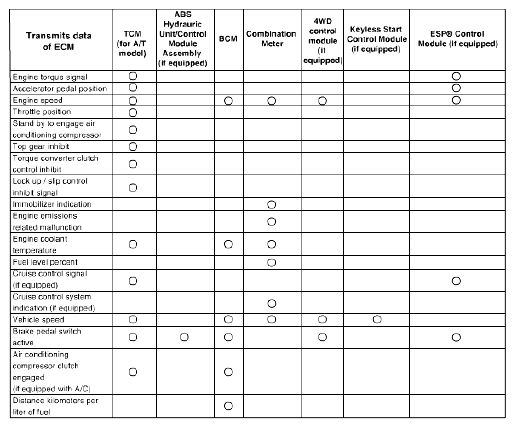

Fig 1: Identifying ECM Transmission Data Sheet

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: In communication between ECM and combination meter, between ECM and keyless start control module (if equipped) and between ECM and 4WD control module (if equipped), data is transmitted only from ECM to combination meter, keyless start control module (if equipped) and 4WD control module (if equipped). (Combination meter, keyless start control module (if equipped) and 4WD control module (if equipped) does not transmit data to ECM).
