General Description
›
Electronic Control System Description
›
Electronic Control System Location
Electronic Control System Location

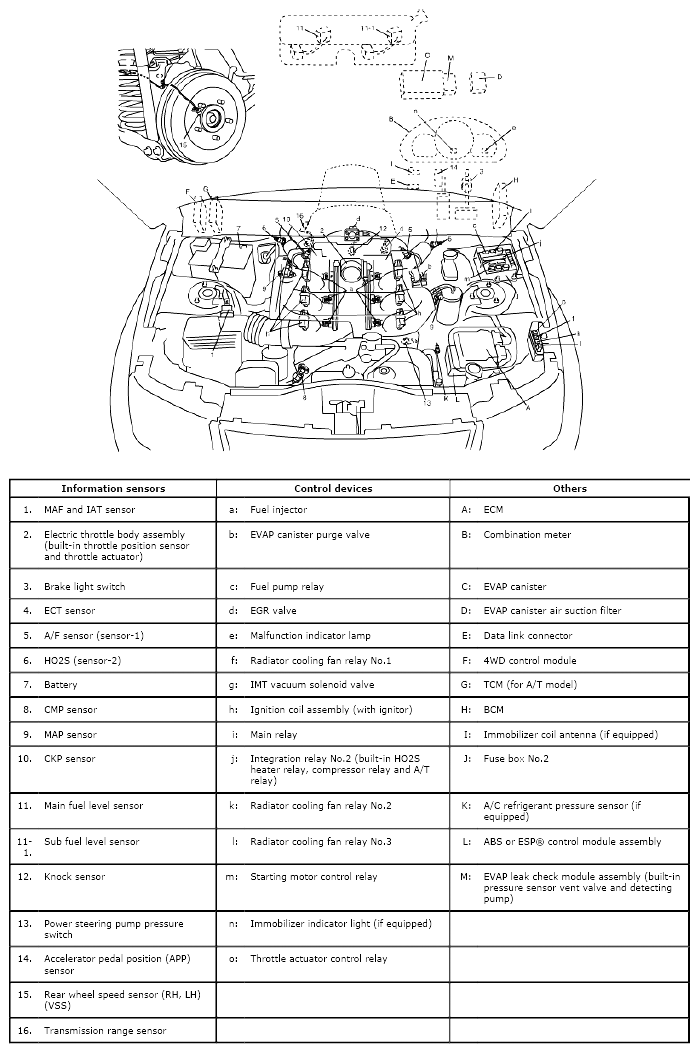

Fig 1: Identifying Electronic Control System Underhood Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
