Keyless Start Control Module Power and Ground Circuit Check
›
Wiring Diagram
Keyless Start Control Module Power and Ground Circuit Check: Wiring Diagram

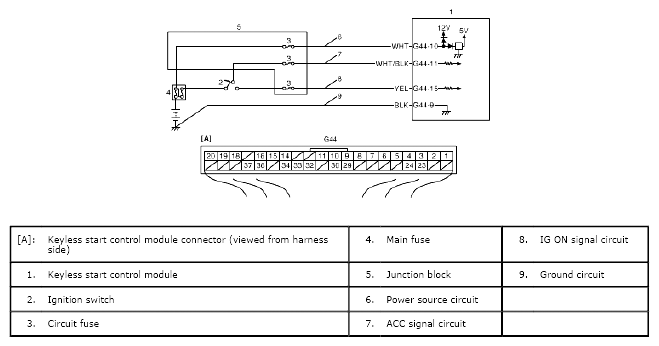

Fig 1: Identifying Keyless Start Control Module Power & Ground Circuit - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
