Engine Cranks But Will Not Run: Notes

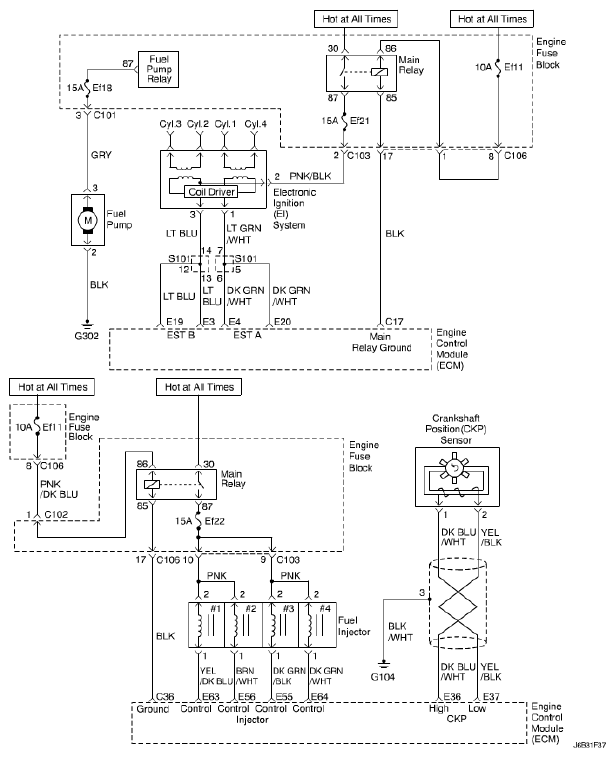

Fig 1: Engine Control Module - Circuit Diagram
G04817261Courtesy of SUZUKI OF AMERICA CORP.
