Engine Cooling Fan Circuit Check - Dual Fan
›
Notes
Engine Cooling Fan Circuit Check - Dual Fan: Notes

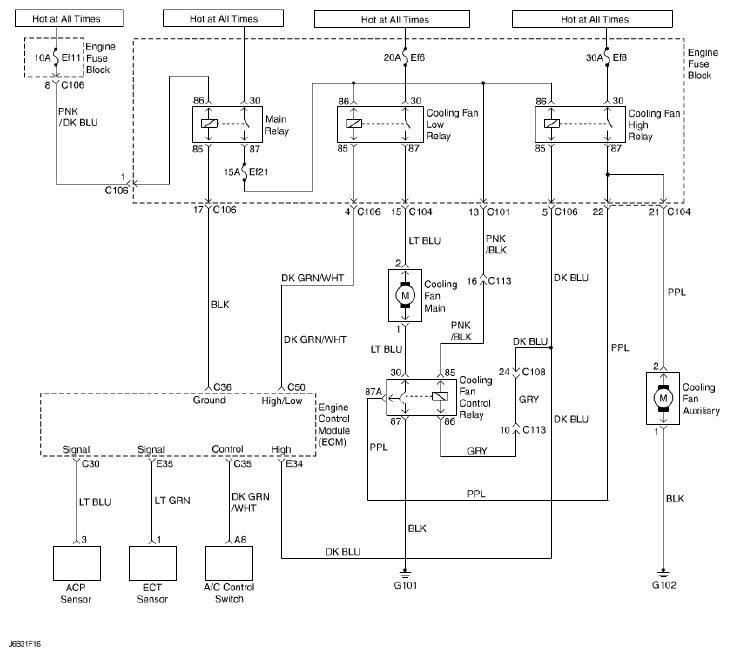

Fig 1: Engine Cooling Fan - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
