Parking Lever Components
Parking Lever Components

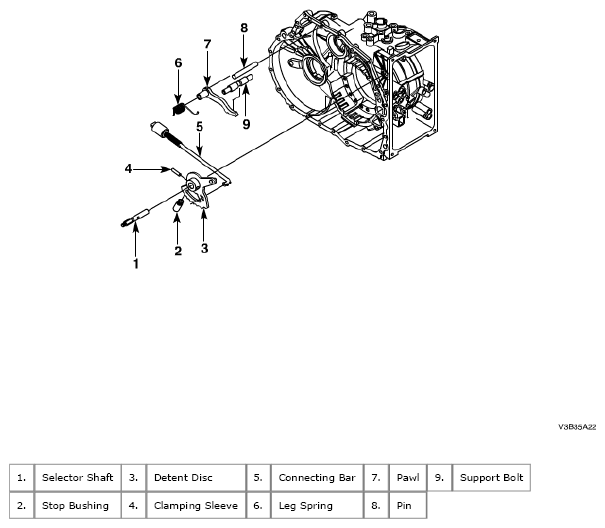

Fig 1: Exploded View Of Parking Lever Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
