Parking Lock System Disassembly and Assembly

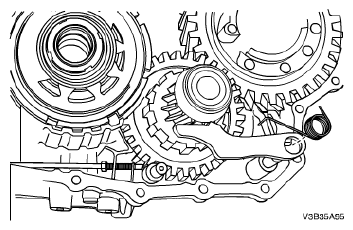

- Remove the parking lock assembly.
- Parking lock system is consist of parking pawl, leg spring, support bolt.
- Installation should follow the removal procedure in the reverse order.
Courtesy of SUZUKI OF AMERICA CORP.
