Shift Linkage Components

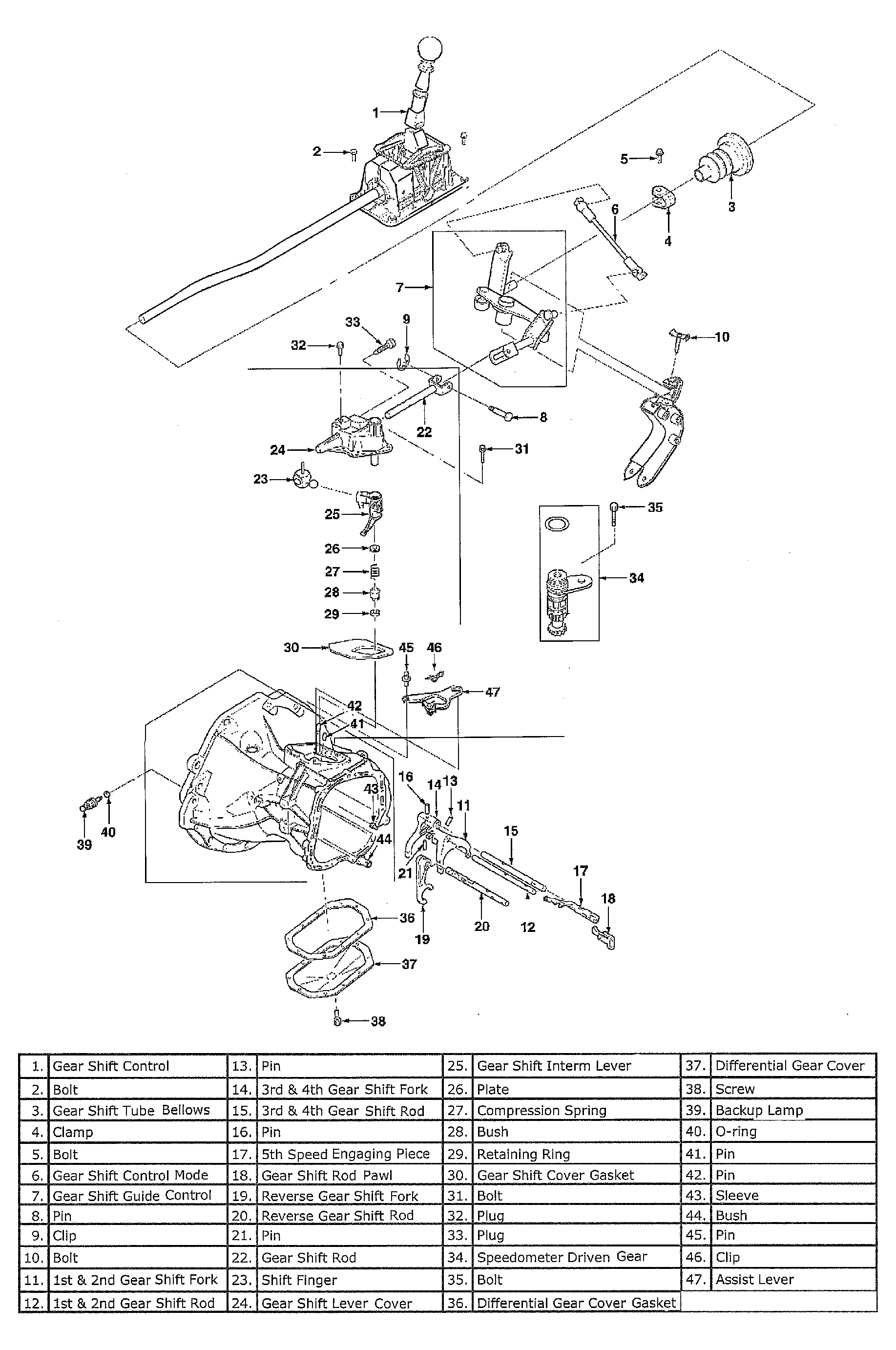

Fig 1: Identifying Shift Linkage Components (Type A)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Shift Linkage Components (Type B)

Courtesy of SUZUKI OF AMERICA CORP.
