Immobilizer System
›
Component Location
›
Immobilizer Control System Components Location
Immobilizer Control System Components Location

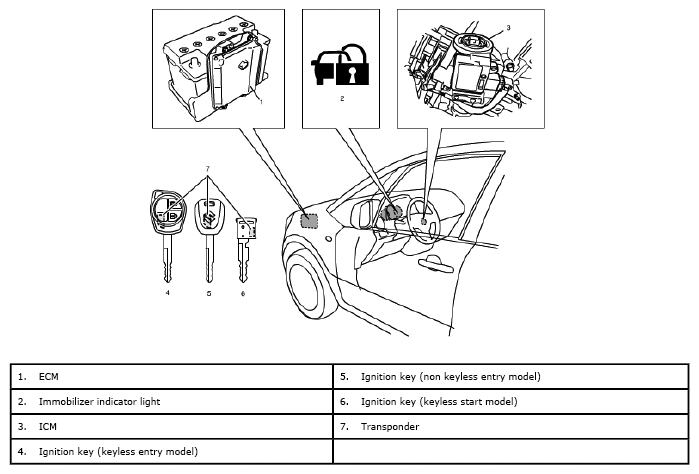

Fig 1: Identifying Immobilizer Control System Components Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
