Keyless Start Control Module Power and Ground Circuit Check
›
Wiring Diagram
Keyless Start Control Module Power and Ground Circuit Check: Wiring Diagram

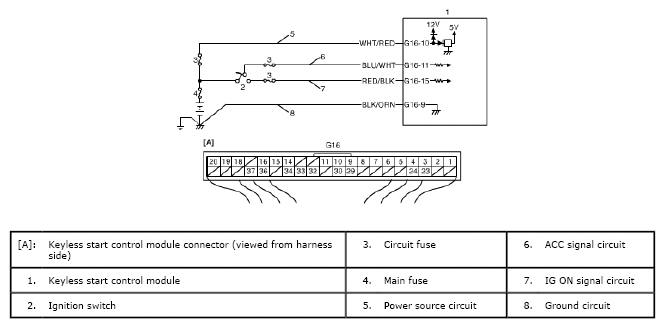

Fig 1: Keyless Start Control Module Power And Ground Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
