Console Box Components
Console Box Components

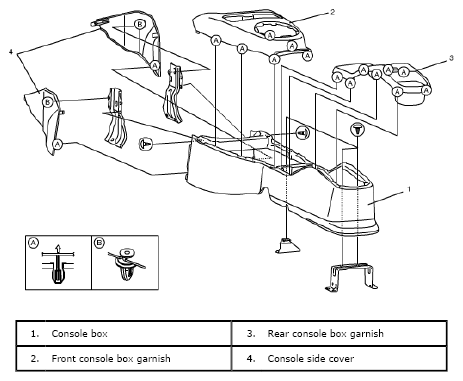

Fig 1: Identifying Console Box Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
