Power Window Sub Switch Inspection

  1. Remove front door trim from door panel, refer to Step  1) to  3) of FRONT DOOR GLASS REMOVAL AND INSTALLATION .
  2. Remove power window sub switch from door trim.
  3. Check for continuity between terminals at each switch condition.

    If check result is not as specified, replace switch.

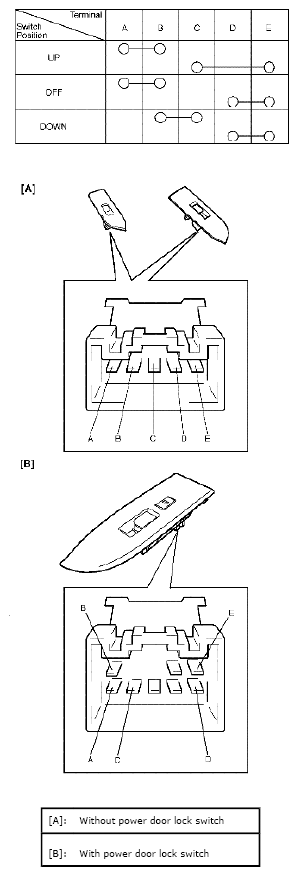

    Fig 1: Inspecting Power Window Sub Switch
    G04849028Courtesy of SUZUKI OF AMERICA CORP.
