BCM Reception Data

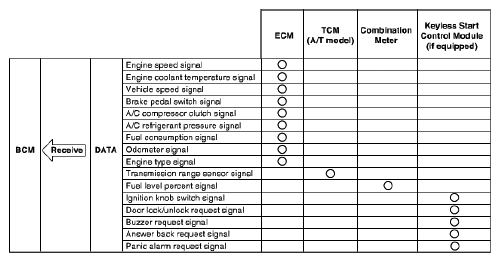

Fig 1: Identifying BCM Reception Data Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
