Generator Unit Components
Generator Unit Components

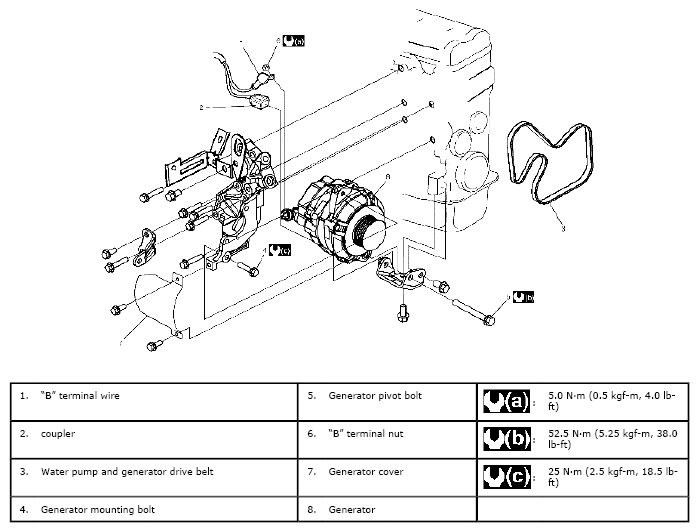

Fig 1: Generator Unit Components & Torque Specification
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
