Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component	Location

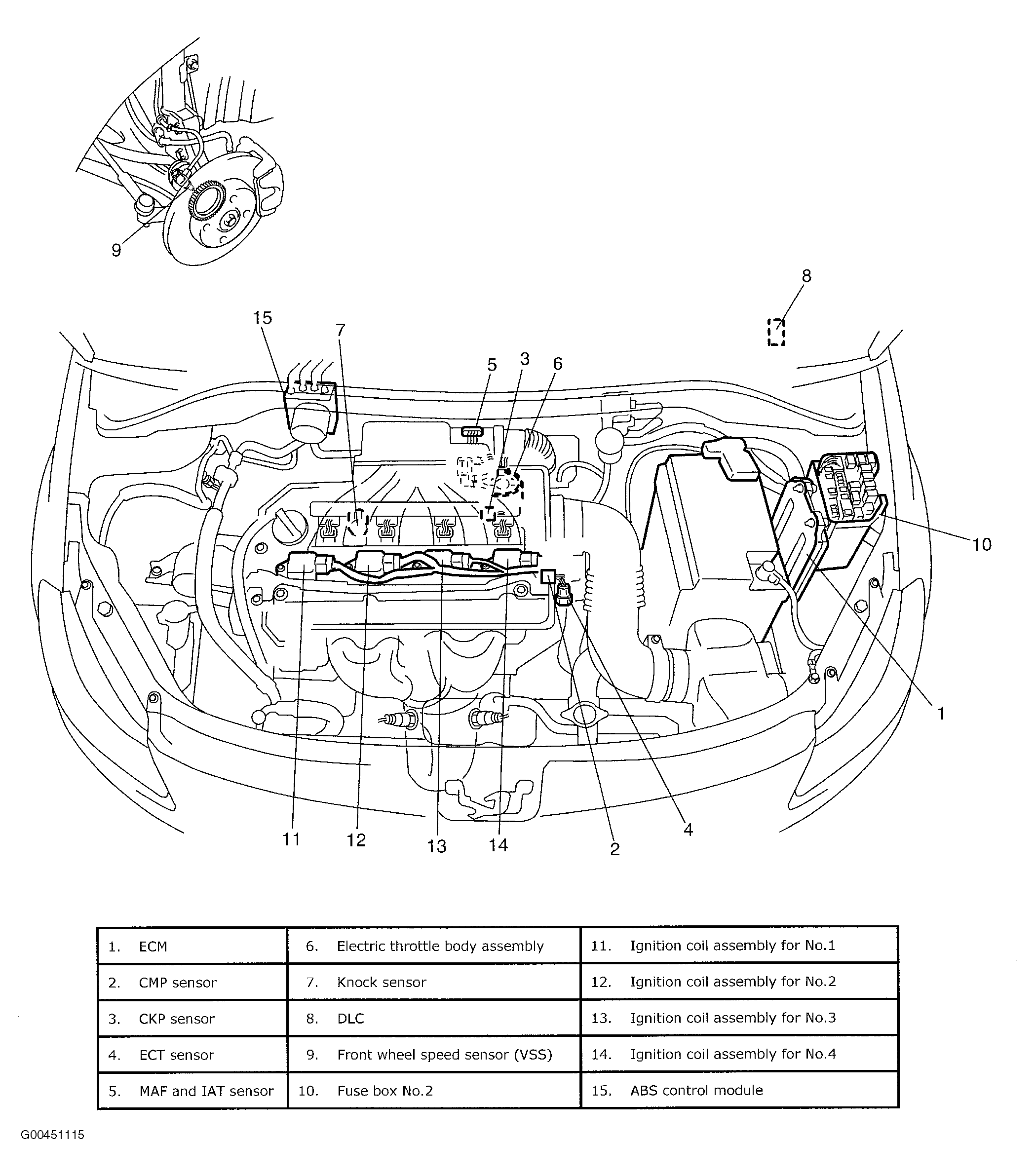

Fuse Box No. 2	Left side of engine compartment. See Figure.

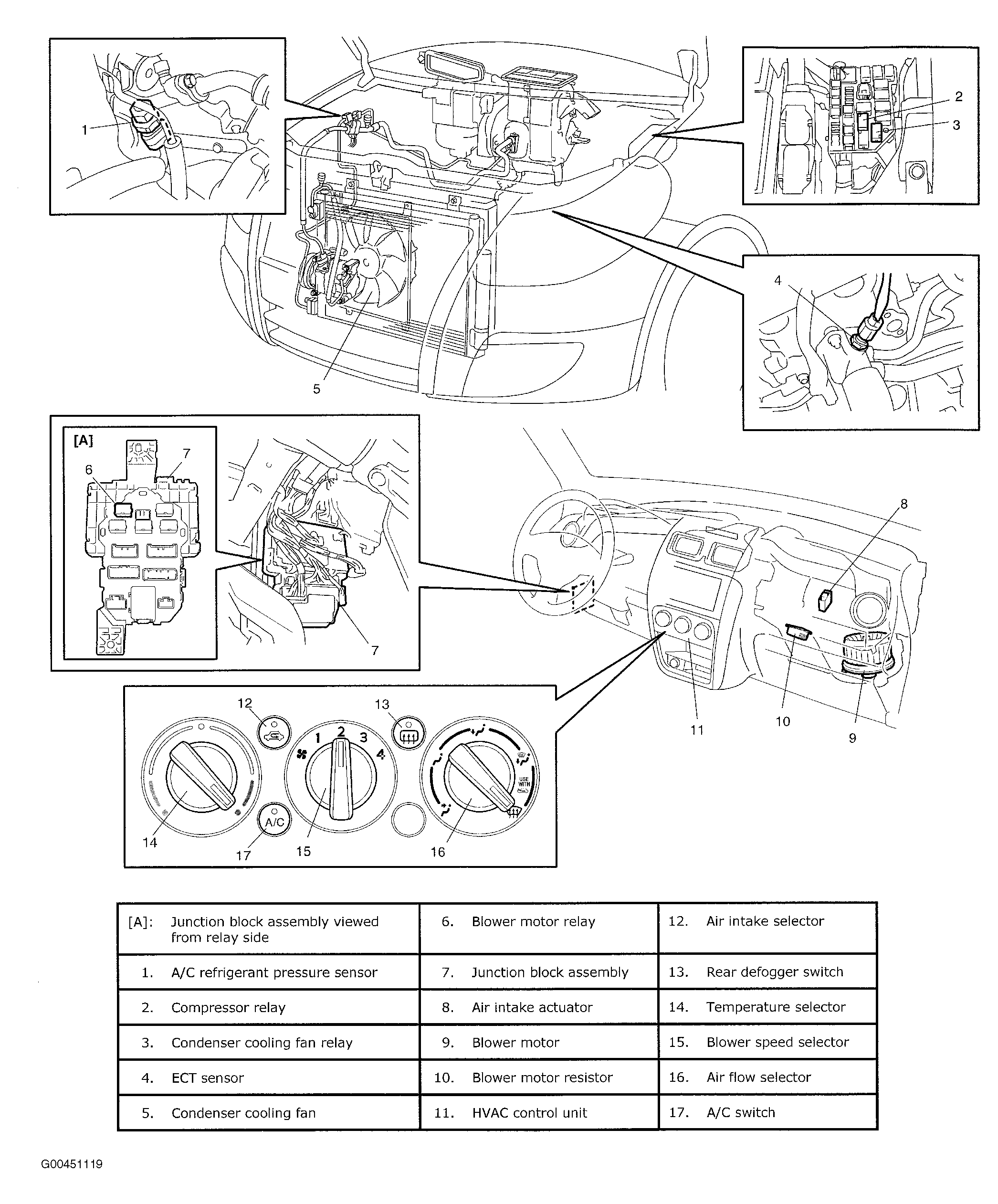

Junction Block Assembly	Left side of dash. See Figure.
Main Fuse Box	Behind battery. See Figure.
