Component Location
›
Audio System Component Location
Audio System Component Location

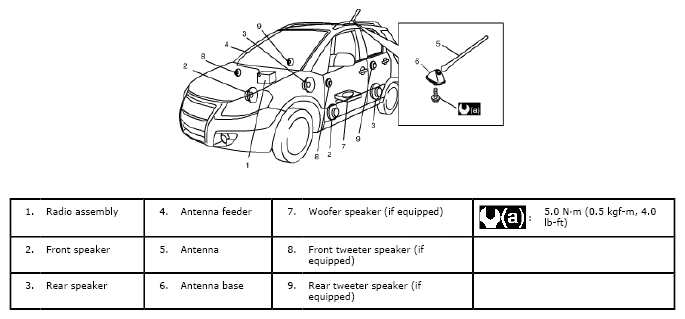

Fig 1: Identifying Audio System Component Locations With Tightening Torque
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
