Combination Meter Reception Data

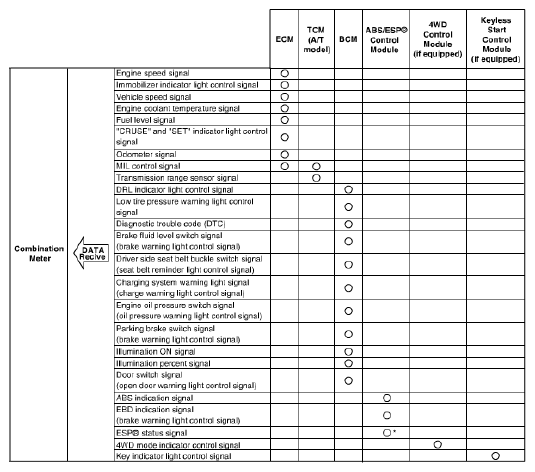

Fig 1: Combination Meter Reception Data Reference Chart
G04848913Courtesy of SUZUKI OF AMERICA CORP.
NOTE: *: ESP® model
