Starting Motor Unit Components
Starting Motor Unit Components

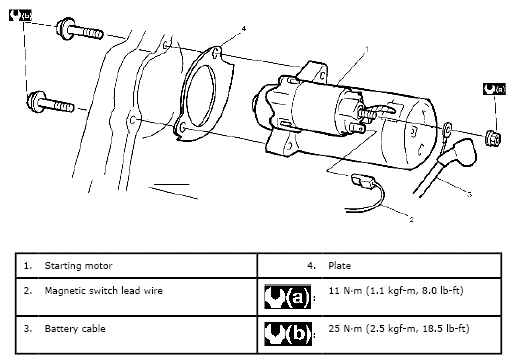

Fig 1: Identifying Starting Motor Unit Components With Tightening Torque
Courtesy of SUZUKI OF AMERICA CORP.
