Electronic Control System Components Location

NOTE: The figure shows left-hand steering vehicle. For right-hand steering vehicle, parts with (*) are installed at the opposite side.

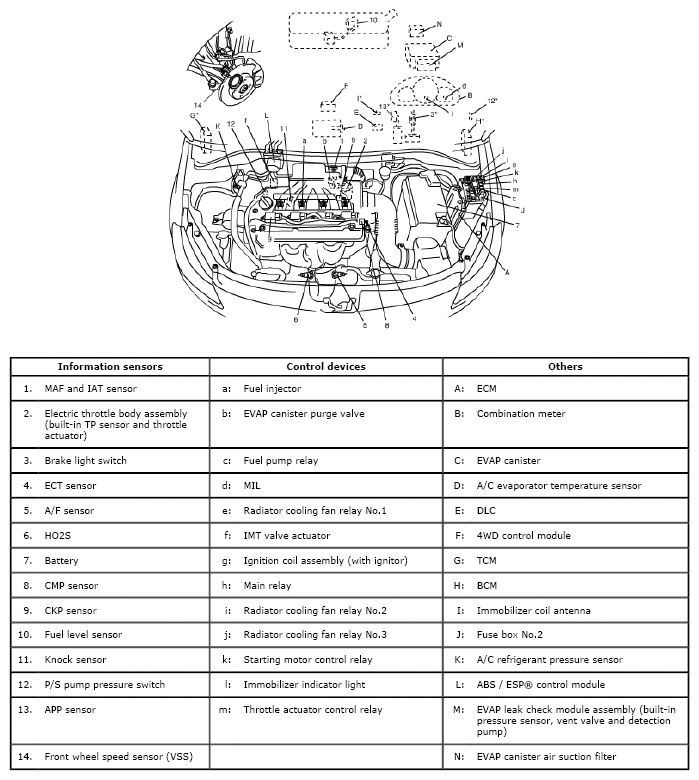

Fig 1: Identifying Electronic Control System Components Location

Courtesy of SUZUKI OF AMERICA CORP.
