A/C System Circuits Check
›
Wiring Diagram
A/C System Circuits Check: Wiring Diagram

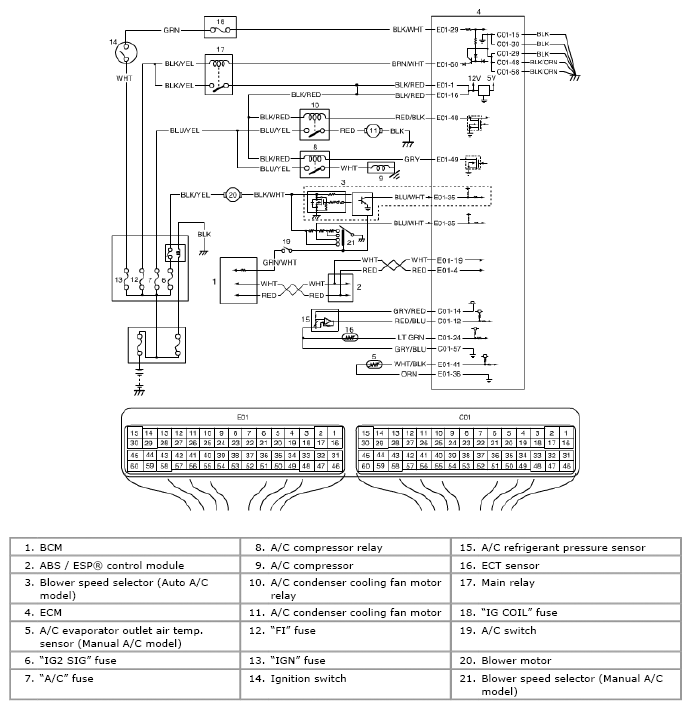

Fig 1: A/C System Circuit - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
