Fuel System Components
Fuel System Components

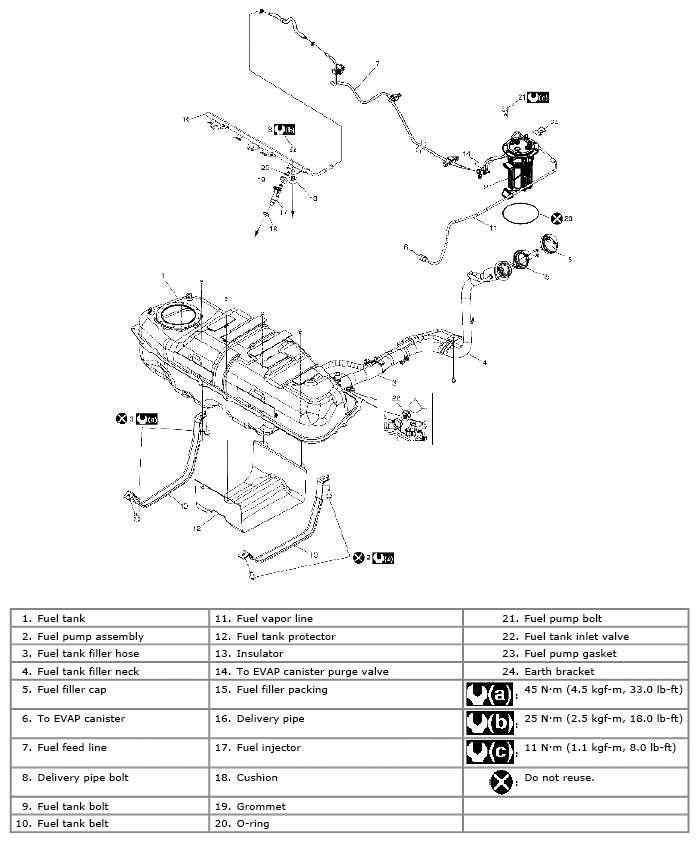

Fig 1: Identifying Fuel System Components With Tightening Torques
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
