Body Frame Dimensions

WARNING: This page is about a different car, the 2006 Suzuki Verona. However, it is still accessible from the selected car via links, so may be relevant.

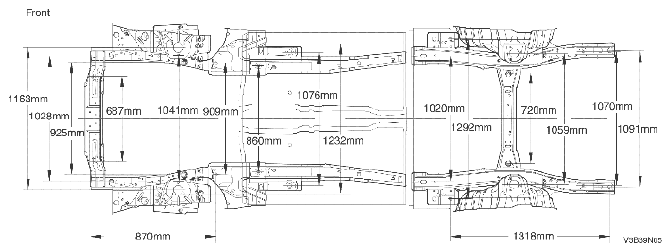

Fig 1: Body Frame Dimensions (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Body Frame Dimensions (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
