Front Strut Assembly Components
Front Strut Assembly Components

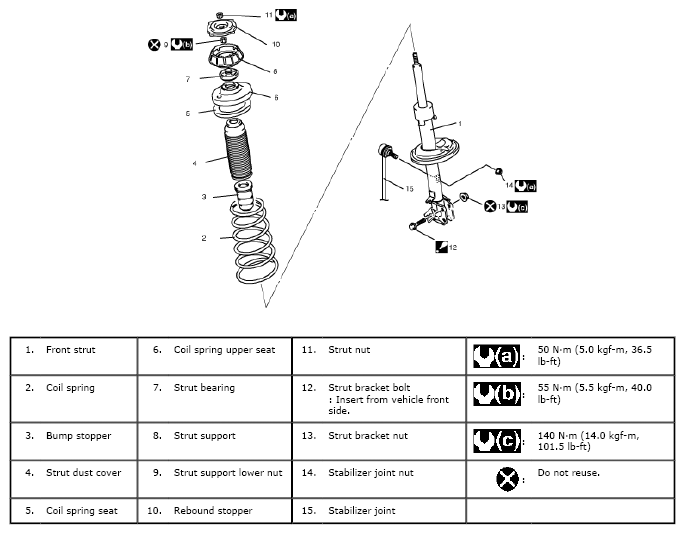

Fig 1: Front Strut Replacement Components & Torque Specification
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
