General Description
›
Electronic Shift Control Input/Output Table
Electronic Shift Control Input/Output Table

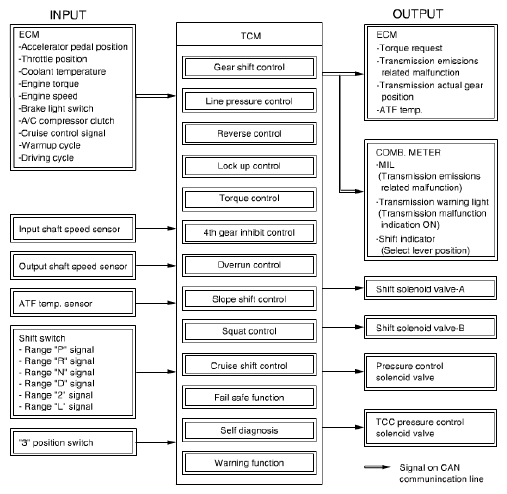

Fig 1: Identifying Electronic Shift Control Input/Output Flow Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
